INS8324A
intel® Elkhart Lake J6413/N6415/N6211/N6210/x6413 Processor
- Intel® Elkhart Lake ATOM/Celeron/Pentium BGA Processor
- Support 2 x DDR4 SO-DIMM (Up to 32GB) and Intel® IBECC
- Compatible with M.2 3042/3052 + SIM slot for 5G cellular network connectivity
- Support Triple Display for HDMI, DisplayPort, and LVDS/eDP
- Support 1 x PCIe X1 (Gen 3) slot, 1 x M.2 2280 B-Key (SATA, PCIe X1), 1 x M.2 2230 E-Key, 2 x SATA III and 1 x mPCIe slot
- 4 x USB2.0, 2 x USB3.1 Gen2, 6 x COM and 1 x Parallel Port / MiAPI (configurable digital I/O)
- 8V~24V wide voltage power input
- Extended Temperature ET : -20 to 70°C ; UT : -40 to 85°C
- Technical Profile
- Specifications
- Introduction
-

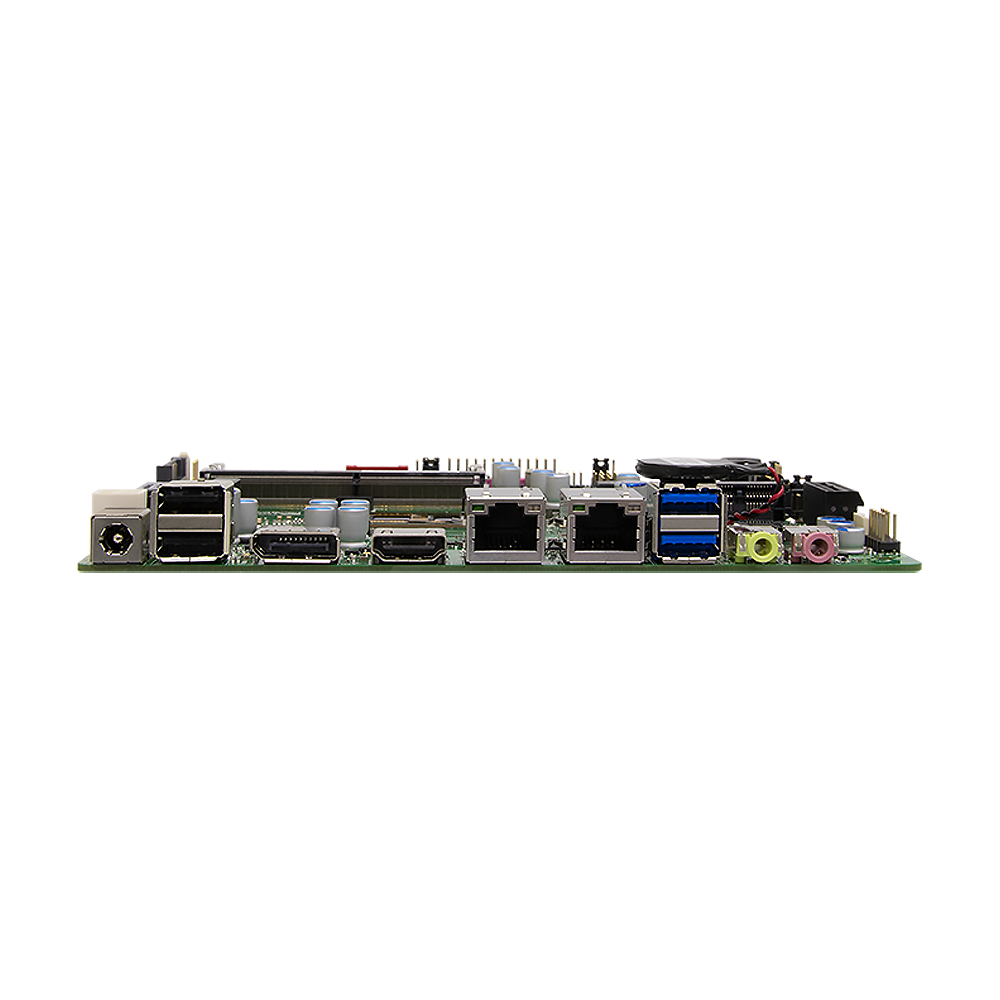

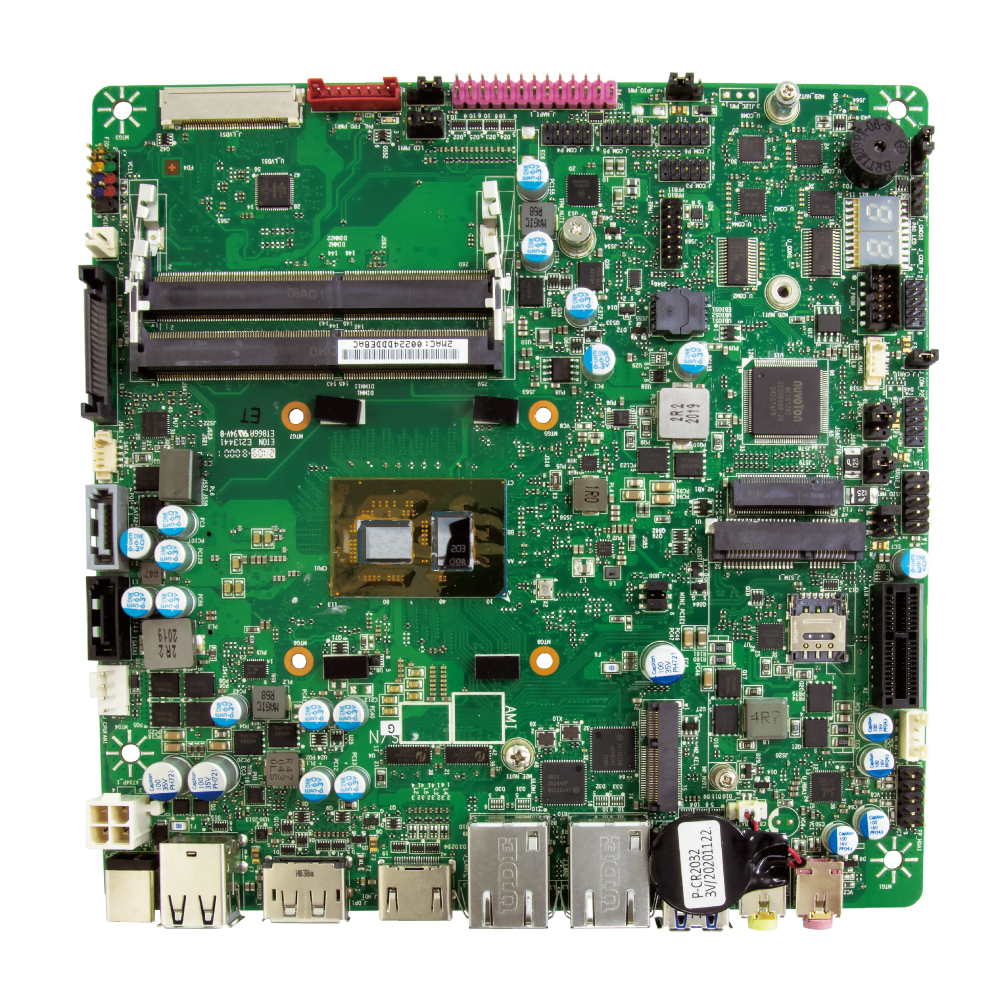

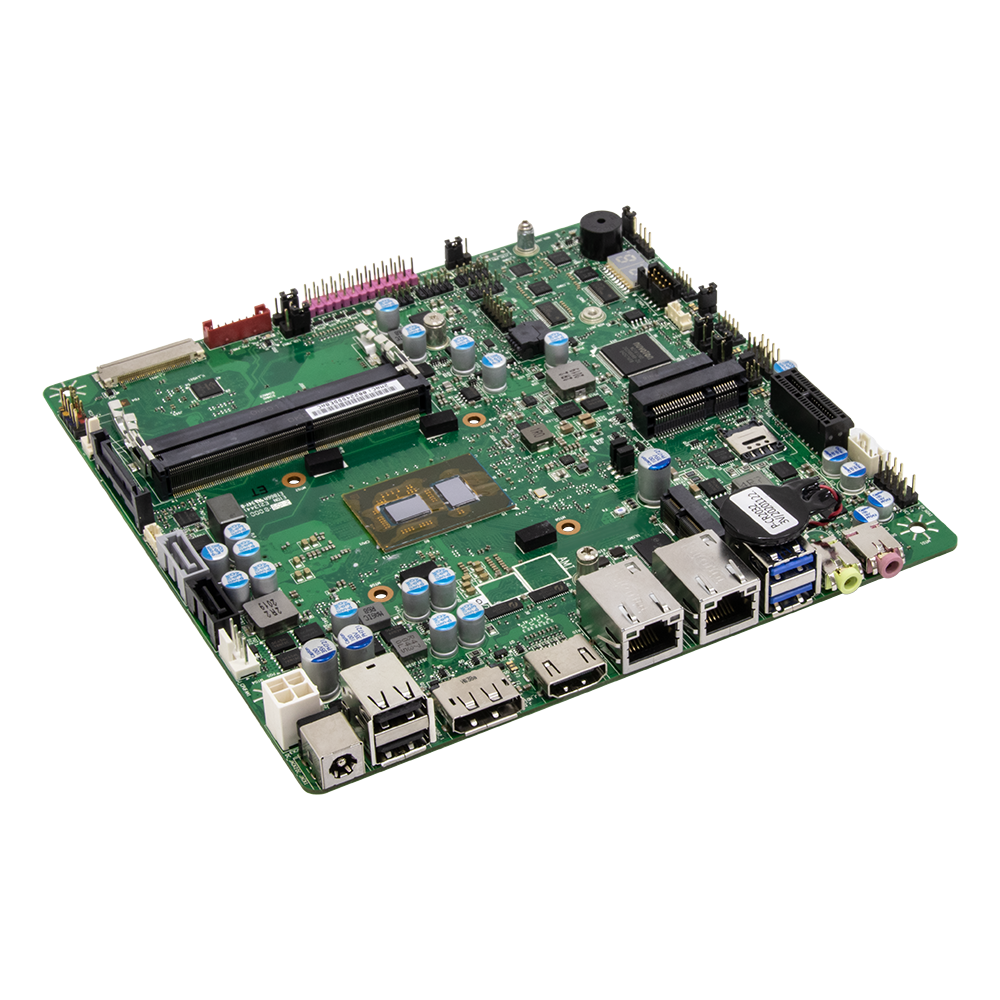

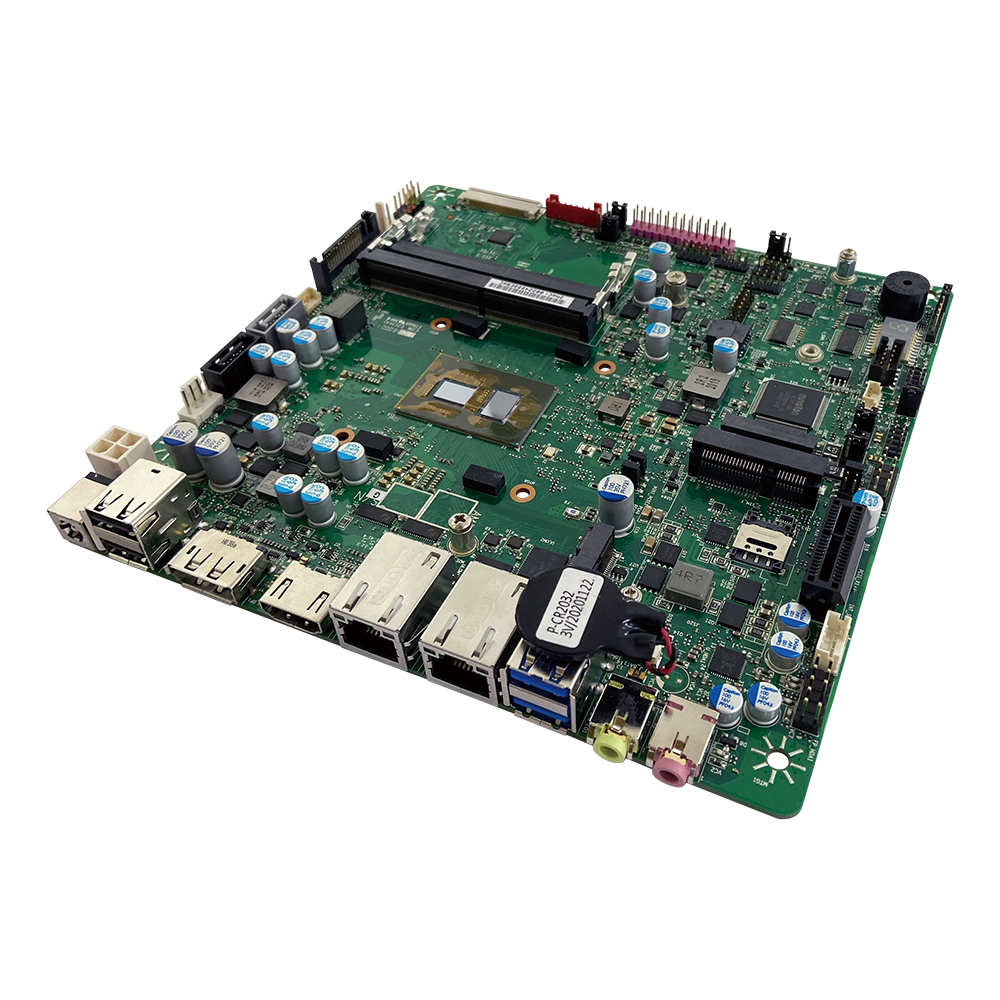

INS8324A is a powerful rugged Mini-ITX solution driven by Intel® Elkhart Lake Processor CPU. Intel Celeron J6413 is B SoC that comes with a maximum of 3.0GHz burst frequency and consumes only 10W, and it is 70% Performance improvement by Intel 10nm microarchitecture. It supports 2x DDR4 SO-DIMM up to 32GB capacity and Intel IBECC that corrects single-bit memory errors in standard, non-ECC memory.
It is Compatible with M.2 3042/3052 and SIM slot for 5G cellular network connectivity. Three independent displays can be driven up to 4K resolutions via DisplayPort, HDMI, and optional eDP. Besides, INS8324A got rich I/O ports, includes 4 x USB2.0, 2 x USB3.1, 2 x COM(Extra 1 x RS232/422/485 Header + 3 x RS232 Header for Option, total 6 x COM) and 1 x Parallel Port / MiAPI, complete and flexible expansion possibility for easy system integration.
A wide range power input of 8V~24V option offers users can protect the board from damages cause by sudden surge of voltage, thus further secure the reliability. For mission-critical applications, INS8324A take advantage of key components soldered onboard to ensure ultimate durability, utmost resistance to shock & vibration. INS8324A is truly a rugged IMB ideal for Energy/ Utility/ High performance application needs. With various extensive ability and strong computing power, which can be utilized in applications such as large size KIOSK, facial identification, and gaming industry.
|
System |
||
|---|---|---|
|
CPU |
Intel® Elkhart Lake: Celeron J6413 (1.5M Cache, up to 3.00 GHz , TDP 10W) Pentium N6415(1.5M Cache, up to 3.00 GHz, TDP 6.5W) Celeron N6211(1.5M Cache, up to 3.00 GHz, TDP 6.5W) Celeron N6210(1.5M Cache, up to 2.60 GHz, TDP 6.5W) Atom x6413E(1.5M Cache, up to 2.60 GHz, TDP 9W) |
|
|
Memory type |
DDR4 3200 MHz / 2 x 260-pin SO-DIMM / Max. 32GB (Non-ECC) |
|
|
Chipset |
Intel® SoC Integrated |
|
|
TPM |
Nuvoton NPCT750AABYX TPM2.0 (Optional) |
|
|
I/O Chipset |
Nuvoton NCT6126D(eSPI) |
|
|
Watchdog |
1-255 sec. or 1-255 min. software programmable and can be generate system reset |
|
|
Display |
||
|
Display Port |
Up to 4K (4096 x 2160) @60 Hz |
|
|
HDMI |
Up to 4K (4096 x 2160) @60 Hz |
|
|
eDP (Option) |
Up to 4K (4096 x 2160) @60 Hz |
|
|
LVDS |
Up to 1920 x 1200 @60 Hz |
|
|
Audio |
||
|
Codec |
Realtek® ALC888S |
|
|
Expansion |
||
|
M.2 |
1 x M.2 3042 / 3052 / 2242 / 2260 / 2280 B key (USB2.0, SATAIII, PCIex1) 1 x M.2 2230 E key (PCIe X1, USB2.0) |
|
|
miniPCIe |
1 x mPCIe Full size (USB2.0 / PCIe X1 / SATAIII) |
|
|
PCIe x 1 |
1 |
|
|
Ethernet |
||
|
Chipset |
Intel® I211AT |
|
|
Front I/O |
|
|
|
USB |
2 x USB 3.1, 2 x USB 2.0 |
|
|
Display I/O |
1 x HDMI 1.4, 1 x DisplayPort 1.4 |
|
|
LAN |
2 x RJ45 |
|
|
Audio |
1 x Mic-in, 1 x Line-out |
|
|
Internal I/O header (No Edge I/O Needed) |
||
|
SATA |
2x SATAIII(Multiplexed with M.2 and mSATA port) |
|
|
USB |
2 x USB 2.0 Header |
|
|
Display I/O |
1 x LVDS / 1 x Backlight Connector |
|
|
Audio I/O |
1 x Speaker Header 1 x Front Audio Header (Mic-in / Line-out) |
|
|
Serial Port |
2 x RS232 Header (Extra 1 x RS232/422/485 Header + 3 x RS232 Header for Option, total 6 x COM) |
|
|
Parallel Port |
1 x MiAPI Header (Optional for Parallel Port Header) |
|
|
Fan |
1 x 4-pin CPU Fan Header |
|
|
Power |
1 x AT / ATX Mode Select Jumper / 1 x ATX 4-pin Power Connector |
|
|
Others |
1 x Clear CMOS Button / MiAPI: Programmable header (support 10 x GPIO, 1 x SMBUS, 1 x UART, 1 x Watchdog) with API library supported for Windows OS / 1 x Buzzer / 1 x 3-pin CAN-FD Bus Header |
|
|
Mechanical and Environmental |
||
|
Form Factor |
Mini ITX |
|
|
Power Type |
DC-in 8~24V/ ATX 4-pin Power Connector + DC Jack |
|
|
Dimension |
170 mm x 170mm |
|
|
Operating Temperature |
ET : -20℃ ~ 70℃ UT : -40℃ ~ 85℃ |
|
|
Storage Temperature |
-40℃ ~ 85℃ |
|
|
Relative humidity |
10% to 90%, non-condensing |
|
|
Standard Compliance |
||
|
Standard Compliance |
CE/FCC |
|
