19” 1U Rack-mount Rugged Fanless Server with 8th/9th Processor (up to 65W) , Rich I/O interface, 9~36V DC-IN, Redundant Server , Extended Temp. -30°C to 70°C

  • 9th & 8th Gen Intel® Coffee Lake LGA1151 Socket Processor
  • Intel®Q370 Chipset
  • 2 x SO-DIMM DDR4 2400/2666 MHz up to 64GB

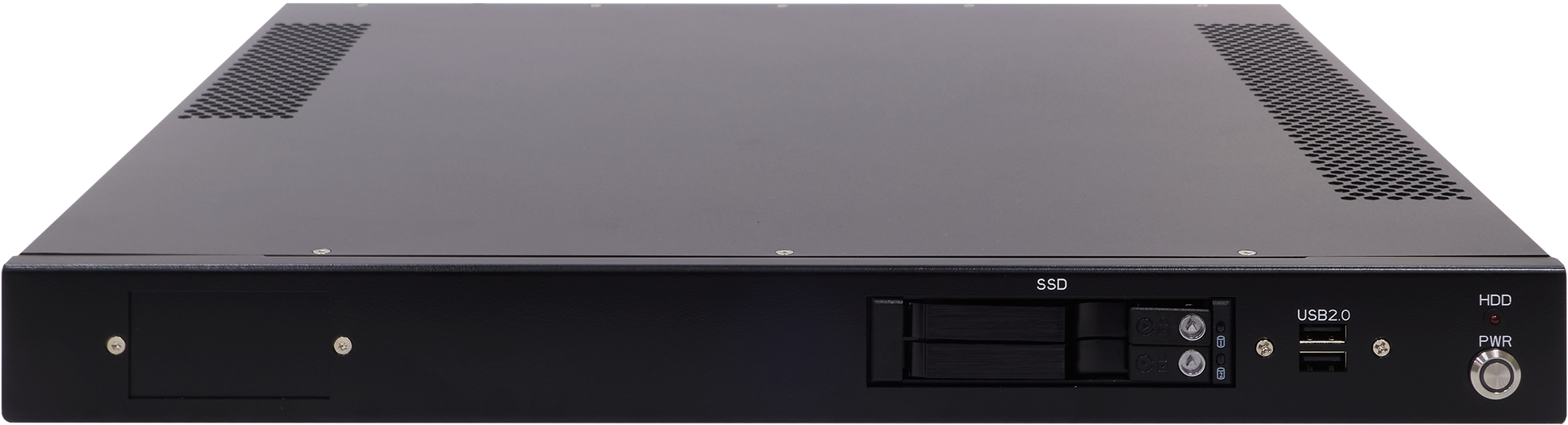

  • Front IO: 2x2.5”SATA HDD/SSD easy swap tray,2xUSB2.0

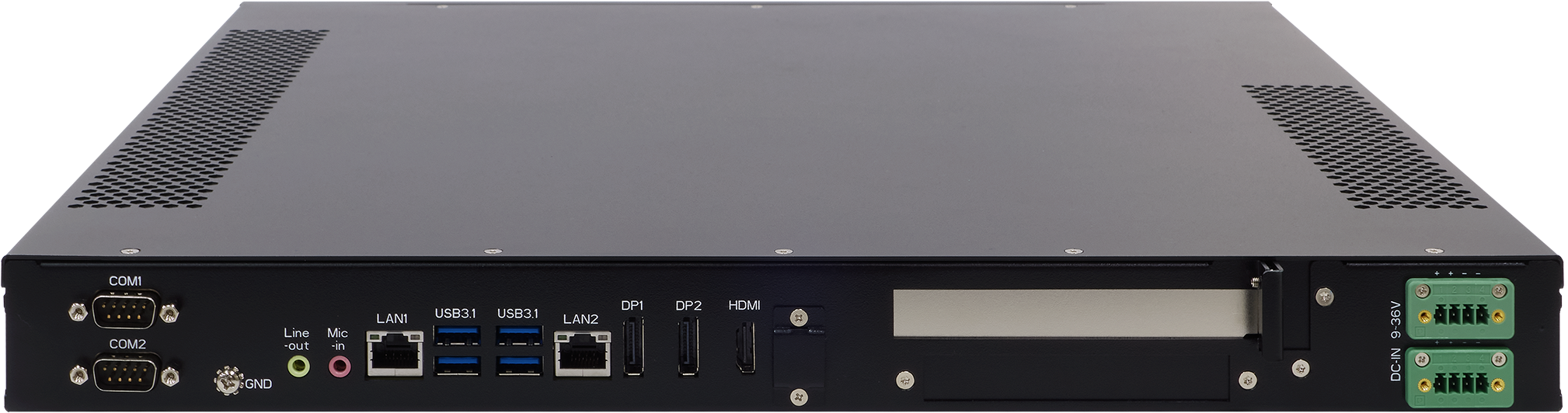

  • Back IO: 2xCOM,4xUSB3.1,2xDP,2xLAN,1xLine-out/Mic
  • Extended Operating Temperature -30 to 70°C
  • 9~36V DC-IN
  • Technical Profile
  • Specifications
Introduction

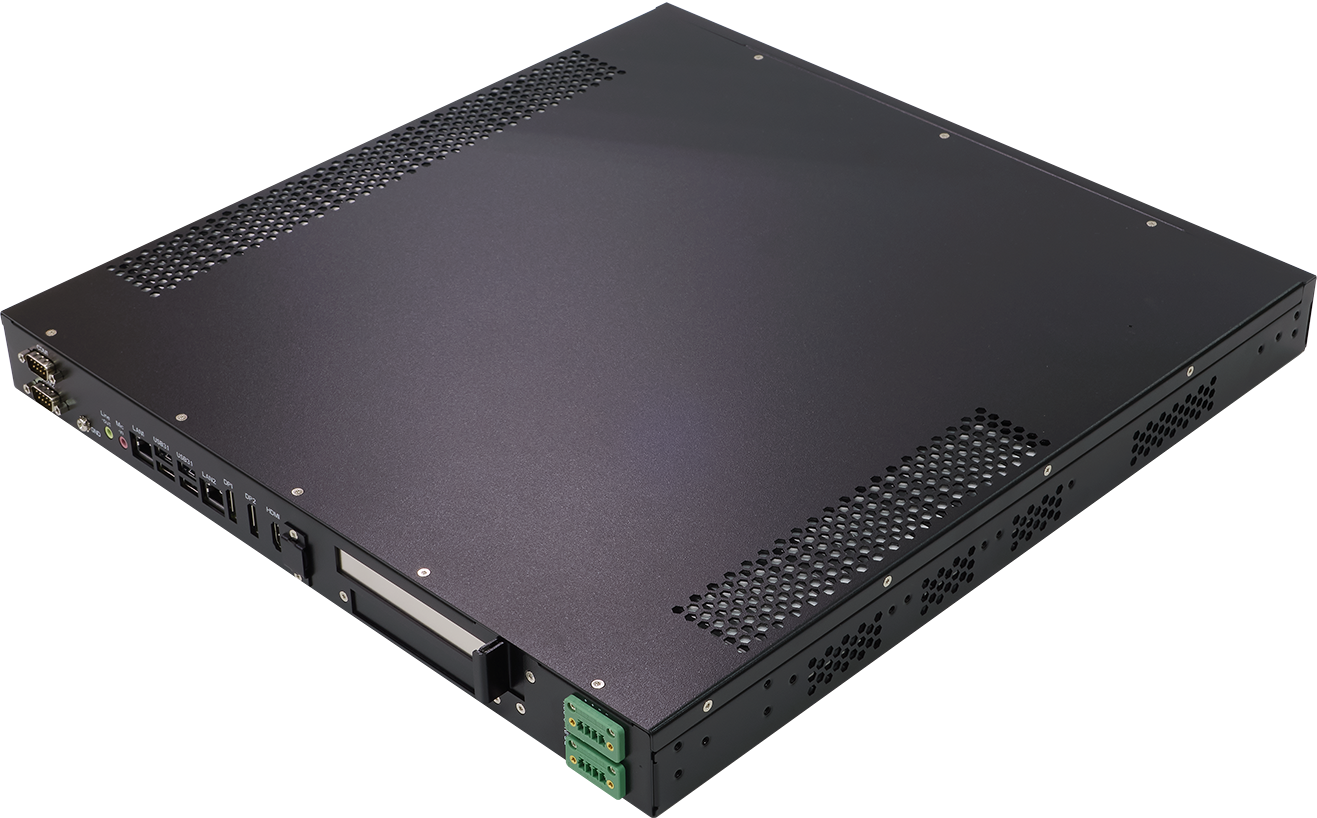

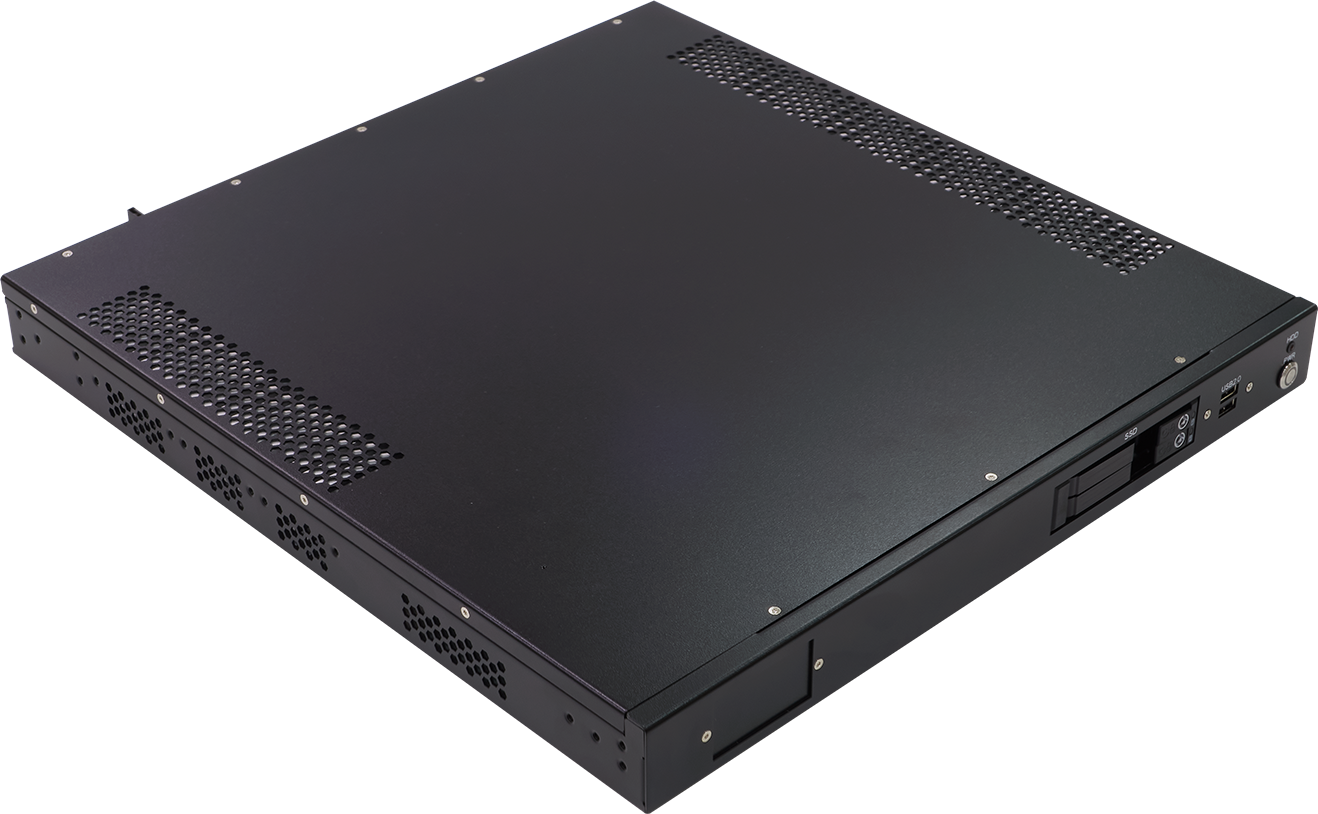

ROC286AA is an industrial 19” 1U Rack-mount rugged fanless server. Based on Intel® Coffeelake 14nm Core™ Q370 Chipset, ROC286AA can be processed by 8th/9th Processor (up to 65W). It supports up to 64GB of memory capacity, onboard dual Gbit Ethernet, 2 x DP (resolution up to 4096 x 2304),1XHDMI, SuperSpeedPlus USB 3.1 ports (10Gb/s). Also, ROC286AA  provides PCIe x16 expansion for high speed delivering, like RAID card, graphic card or 10GbE…etc.

With further advantages, for example, HDD/ SSD easy swap tray and multi-expansion slot, we believe that ROC286AA  is a best choice for those, who are looking for an ideal server to meet the requirements of commercial and industrial platforms, process control, intelligent automation and manufacturing applications.


ROC286AA REAR IO拉線圖



ROC286AA BACK IO拉線圖

The need for data security in Big Data era

In the Big Data era there are billions of bits of data produced every single day. With the ever-increasing data, how to handle volumes of data while securing it becomes one of the most important issues in modern society. From high speed read and write capacity to backup plan preventing from shutdown, all these features should be considered when choosing an ideal server for data processing. When it comes to outdoor applications, requirements of the server are even stricter – external forces, such as collision and vibration, may cause serious damage easily. However, the server needs to run nonstop to help the whole system respond properly. Thus, for on-the-road development a server is expected to well operate in mobile environment despite the harsh conditions.

Considering the examples given above, the professional rugged computer designer, 7STARLAKE, launches a new 19” 1U rack-mount rugged fanless server ROC286AA with DC-DC redundant power supply, which is extremely important to secure data in the case of failures. As a 1U rack-mount server, ROC286AA provides the most cost effective and high density solutions. What’s more, fanless cooling system with no moving parts ensures internal stability while steering in rough terrain.

High-End Processing Units

Based on Intel® Coffeelake 14nm Core™ Q370 Chipset, ROC286AA can be processed by Intel® Coffeelake-Refresh i7-9700TE (8 cores, 3.8GHz) processor. Compared with previous generations, i7-9700TE processor contains much more compute cores, which means the better performance of computations on the data and much more fast memory caches which are responsible for holding data that is currently being worked on. So, ROC286AA could provides unique military grade capabilities and killer speed while dealing with a large amount of data.

AA



PCIe x16 expansion

Also, ROC286AA provides PCIe x16 expansion for high speed delivering, like RAID card, graphic card or 10GbE…etc.

1. Sensor Fusion Capability:

By adding graphic card, the complete system could fulfill powerful CPU+GPU to support sensor fusion, which requires a powerful processing unit to be in the center, where all the raw data from the sensors is processed. Interpreting the data and deciding how to react, CPU+GPU can make sensors to be truly “smart” sensors and lead the whole system to work accurately.

2. Large Capacity Storage and an advantage of data backup plan:

By adding RocketRAID 4520SGL SAS RAID Card or RocketRAID 840A SATA RAID Card, ROC286AA can expand up to 8 Bays SAS or 12 Bays SATA RAID. By using a large numbers of drives ROC286AA is able to increase a great amount of storage. Moreover, ROC286AA can build a RAID system to increase HDD fault tolerance. In data security, RAID refers to the way which an array of hard disks creates redundant backups of the data, so data can be retained even in the event of a catastrophic system failure.

3. High Capacity RAM support:

Further more, two SO-DIMM, dual channel DDR4 are designed in our rugged server, increasing the RAM of ROC286AA up to 64GB and providing the best operating performance in such a compact size. These features make the ROC286AA an ideal rack-mount server for mobile vehicles, e.g. railway, trucks, and military land vehicles.

DC-DC Redundancy module – Proven reliability

NEW_STYLE_products_ROC285AA_06

To ease the concern that our customers may have, STACKRACK equipped ROC286AA with DC input redundancy module desinged as a fail-safe solution. Integrated with redundancy module, when one power supply (PSU1) fails, PSU2 keeps providing the entire power needs for system. It not only ensures stable operation in different environments, but also helps our customers stand out in the ever-changing world.



Wide Range DC-DC Power Input

ROC285AA features wide range DC to DC power input. Ranging from 9V to 36V, ROC285AA can operate normally despite sudden drop or surge of power. Thus, with this outstanding system, our customers don’t need to worry about the possible lightning strike while planning an outdoor deployment.

NEW_STYLE_products_ROC285AA_07



Specifications

System



CPU

8th/9th Processor (up to 65W)

Memory type

2 x DDR4 SO DIMM up to 64 GB

Chipset

Intel® Q370 Chipset

Expansion Slot

1 x PCIex16

1x M.2 (Key M, 2242/2280) with PCIe and SATA Signal

Storage



HDD/SDD

2 x 2.5” SATA HDD/SSD easy swap tray

Ethernet



Ethernet

Intel® I210 & I219LM GbE LAN (support 10/100/1000 Mbps for x2 RJ45 ports)

Rear I/O



Display Port

2 x DP

HDMI 1 x HDMI

Ethernet

2 x RJ45 Intel® I210 & I219LM GbE LAN (support 10/100/1000 Mbps)

Audio

1xLine-Out;1xMic-IN

COM

2 x 3.5mm Audio Jacks (1 x MIC, 1 x Line-Out)

USB Port

4 x USB 3.1(10Gb/s)

DC-IN

9~36V DC IN (2 X 4P Terminal Block)

Front I/O



Button

1 x Power Button w/Indicator LED

Indicator LED

HDD

USB Port

2 x USB 2.0

Easy Swap SSD Tray

2

Applications, Operating System



Applications

Commercial and Industrial Platforms, Embedded Computing, Process Control

Intelligent Automation and manufacturing applications

Operating System

Windows 10 64Bit

Ubuntu13.04, Ubuntu13.10, Ubuntu14.04, Fedora 20

Physical



Dimension (W x D x H)

430 x450 x 44.4 mm

Weight

8.92Kg

Chassis

SECC

Heatsink

Aluminum Alloy, Corrosion Resistant

Finish

Anodic aluminum oxide

Environmental



MIL-STD-810G Test

Method 507.5, Procedure II (Temperature & Humidity)

Method 501.5, Procedure I (Storage/High Temperature)

Method 501.5, Procedure II (Operation/High Temperature)

Method 502.5, Procedure I (Storage/Low Temperature)

Method 502.5, Procedure II (Operation/Low Temperature)

Method 503.5, Procedure I (Temperature shock)

Green Product

RoHS compliance

Operating Temperature

w/o Graphic Card (ET: -20 to 60°C; UT: -30 to 70°C) ; w/Graphic Card (0 to 50°C)

Storage Temperature

-40 to 85°C
