SK221
PCIe/104(Type 2) MXM GPU Carrier for 1 x VGA & 4 x Mini DisplayPort , 12V DC Input(non- power can support up to 120W)
- StackPC and PCIe/104 Complaint
- Utilizes PCIex16 and x4 Link
- 1 x VGA & 4 x Mini DisplayPort Module
- 12V DC Input(non- external power can support up to 120W)
- MXM 3.0 and 3.1 Graphic card support Type A and Type B MXM Graphic card support
- Support up to NVIDIA GeForce 1050Ti/1650/1660S , RTX2060
- Operating Temp. -40°C to 85°C
- Technical Profile
- Specifications
- Introduction
-

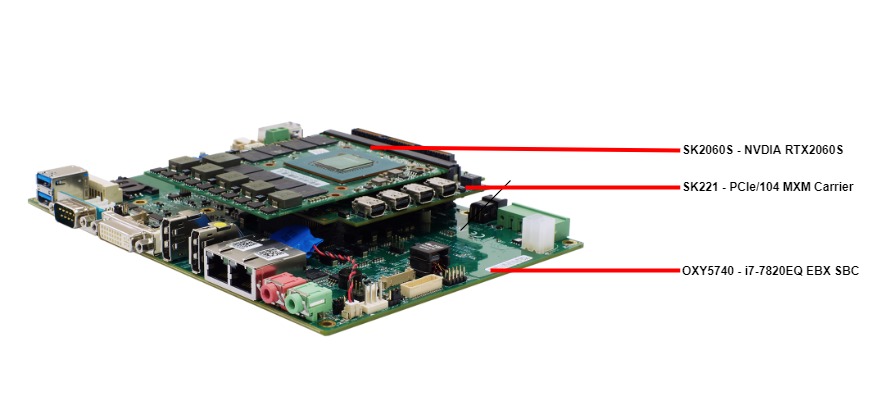

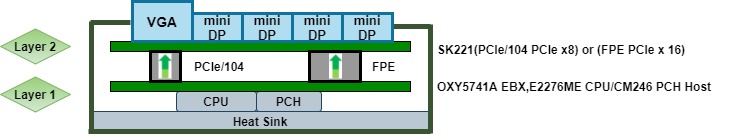

SK221, a PCIe/104(StackPC) carrier module is designed to offer up to 4 independent displays by MXM interface under extended temperature from -40°C ~ 85°C. SK221 is equipped with 4 x mini DP, 1 x VGA (2 x 5 pin header) which can support GPU up to NVIDIA GeForce GTX1080M. SK221 possess the flexibility of switching the signals between FPE connector (PCIe x16), StackPC (PCIe x1, x4) via dip switch thus is best solution for multi-graphic processors demand applications like mission control room, intelligent information entertainment, 19” rack-mount multi node rugged servers, etc.
NVIDIA® GeForce™ GTX 1080M – (8GB GDDR5, 2560 CUDA Cores, 170W)
NVIDIA® GeForce™ GTX 2060S – (8GB GDDR6, 2176 CUDA Cores, 170W)
NVIDIA® Quadro™ RTX 5000 – (16GB GDDR6, 3072 CUDA Cores, 110W)
NVIDIA® Quadro™ RTX 3000 – (8GB GDDR6, 1920 CUDA Cores, 80W)
NVIDIA® GeForce™ GTX 1050Ti – (4GB GDDR5, 768 CUDA Cores, 60W)
Form Factor |
||||
|---|---|---|---|---|
|
PCIe/104 Type II |
||||
Operating Temp. |
||||
|
-40°C to 85°C |
||||
Top Side |
||||
|
PCIe/104 Connector |
1 x PCIe/104 (Top) |
|||
|
MXM Connector |
1 x MXM Connector |
|||
|
VGA |
1 x pin header (Signal from MXM module) |
|||
|
DisplayPort |
4 |
|||
|
DC-In |
1 x 2 pins Terminal Block |
|||
|
Bottom Side |
||||
|
PCIe/104 Connector |
1 x PCIe/104 (Bottom) |
|||
|
FPE |
1 x FPE (Bottom) |
|||
|
Mechanical and Environment |
||||
|
Dimension |
96 x 115.6 mm |
|||
|
Operating Temp. |
-40°C to 85°C (ambient with air flow) |
|||
| Power Requirement | ||||
| Power Requirement | 12V DC-IN(non-power can support up to 120W |
