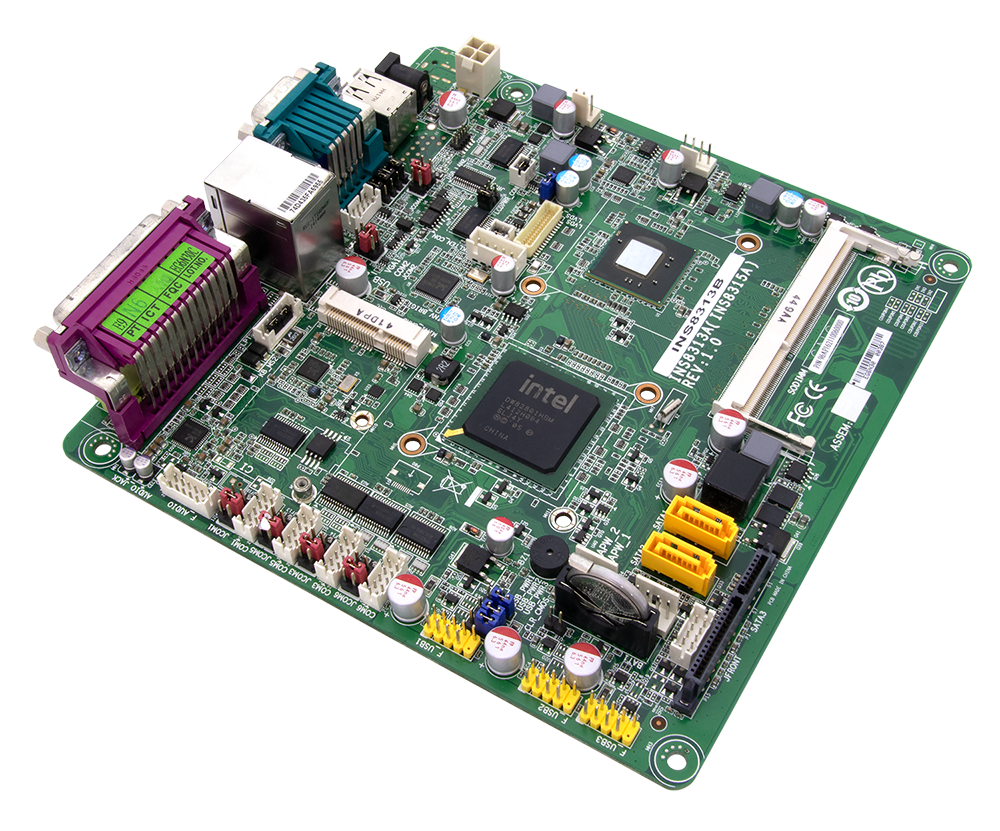

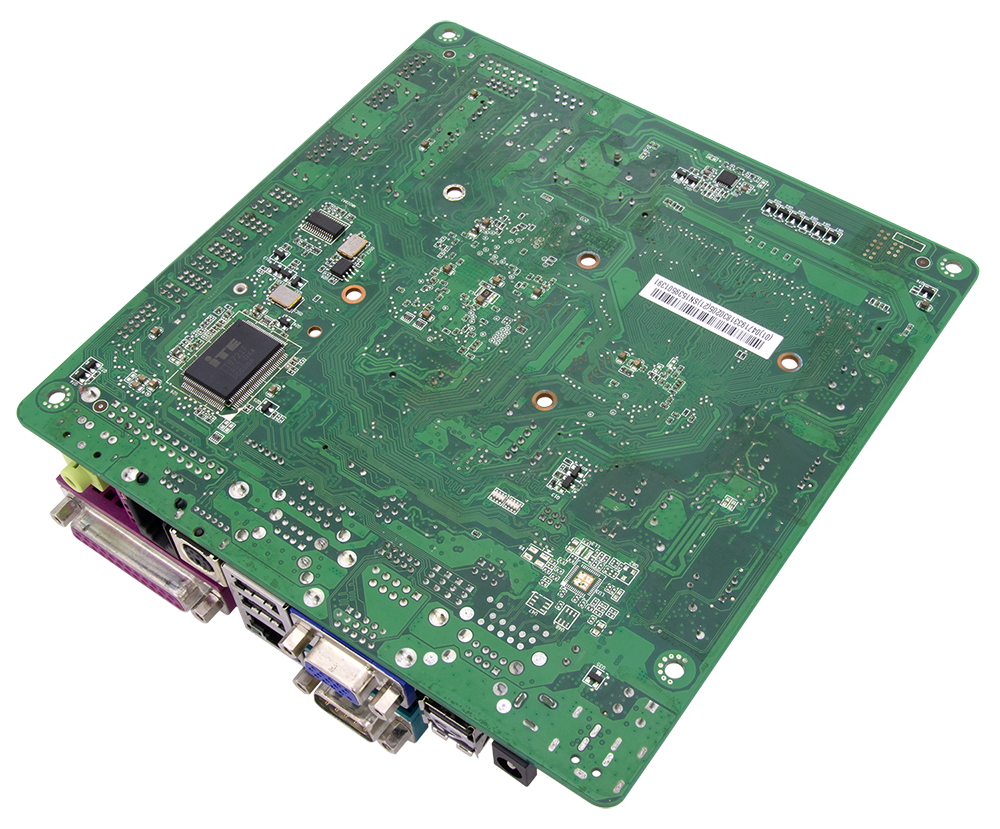

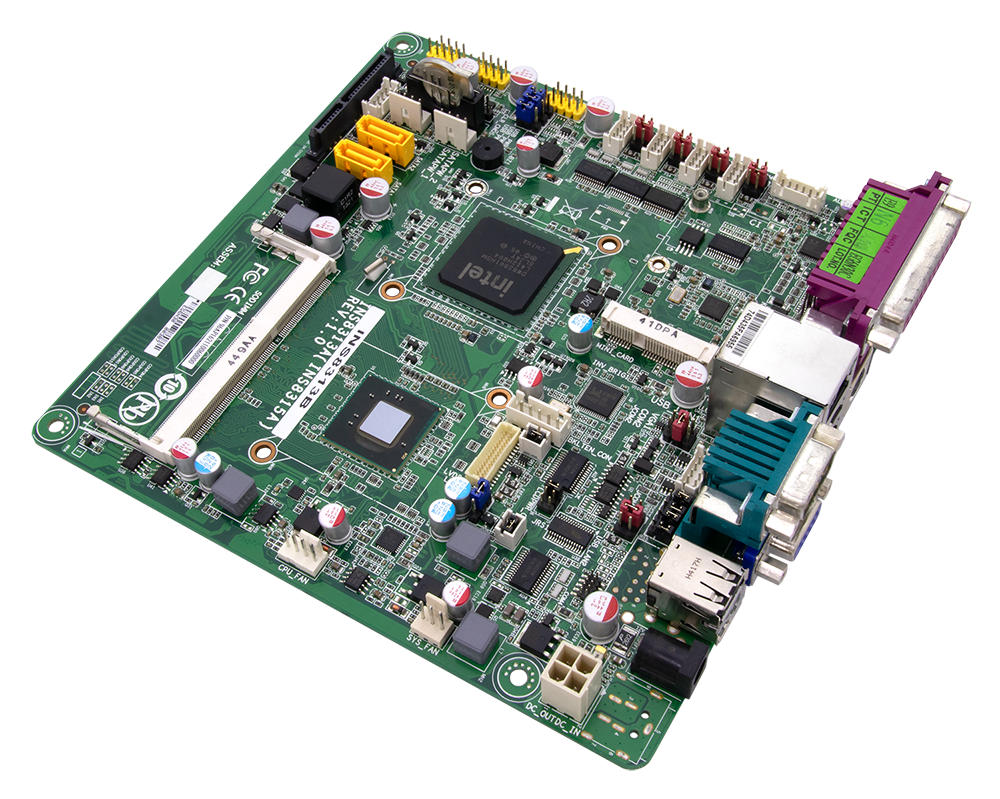

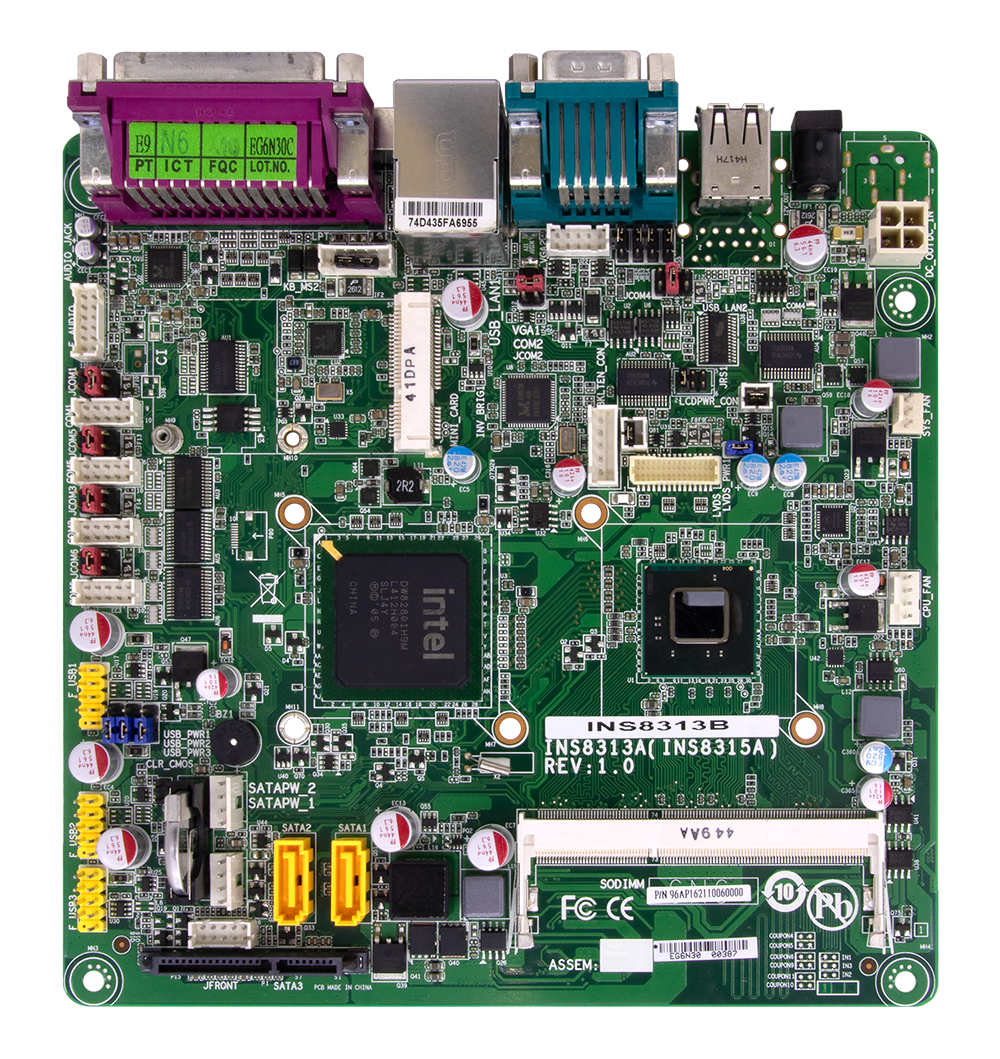

INS8313B

Intel® Pineview D525 Mini-ITX Industrial MB, 12V DC-in

Introduction: Support dual core Intel® Atom™ processor D525 with the Intel® ICH 8M PCH chipset. The Intel® GMA 3150 graphics engine is built into the chipset to provide fast graphics performance, high visual quality, and flexible display options without the need for a separate graphics card.it is ideal for applications such as Kiosk, POS, POI, lottery machine, gaming, and industrial automation.

Operating Temp.
0°C to 60°C
System
CPU Type	Intel® Atom™ D525 1.8 GHz
Chipset	Intel® ICH8M
Memory Type	1 x 204-pin SO-DIMM DDR3 800/1066 MHz up to 4 GB
BIOS	AMI® BIOS
Super I/O	ITE ITE87821
2nd Super I/O	Fintek F81214R
Watchdog	1-255 sec. or 1-255 min. software programmable, can generate system reset
Expansion Slot
Mini PCIe	1
Display
Chipset	Integrated Intel® GMA3150 GFX Render core
Onboard VGA	Yes (Max. resolution 2048 x 1536)
LVDS	Supports single channel 18-bit LVDS (Max. resolution 1366 x 768)
Dual Independent Display Capability	VGA + LVDS
Audio
Codec	Realtek ALC269 High Definition Audio Code
Ethernet
Chipset	１ x RTL 8111E GbE LAN
WOL	Yes
Boot from LAN	Yes for PXE
Rear I/O
VGA	1
Audio	1 x Speaker-out
Ethernet	1 x RJ45
COM	1 x RS232/422/485 with 5V/12V selectable
USB	4 x USB2.0
PS/2	1
RJ11	1 supports cash drawer
LPT	1
I/O Interface
SATA	3 x SATAII (3 Gb/s) 2 x 7-pin SATA II 1 x 7-pin + 15-pin SATAII
USB 1.1/2.0	9 x USB ports by pin header 5 ports by 2x5 pin header-2.54 mm pitch 4 ports on rear I/O
COM	6 x COM ports • COM1 port supports RS232 (0/5/12V) • COM2 port supports RS232/422/485 (0/5/12V) • COM3~COM6 ports supports RS232 (0/5/12V) • COM4 port supports VFD mode
LVDS	20 pin hirose DF13
Fan	CPU/System fan connector
Mechanical and Environment
Form Factor	Mini-ITX Industrial MB
Power Type	12V DC-in, AT/ATX mode support
Dimension	170 x 170 mm (6.7" x 6.7" )
Operating Temp.	0°C to 60°C
Storage Temp.	-40°C to 85°C
Relative Humidity	10% to 90%, non-condensing
