SKP1000

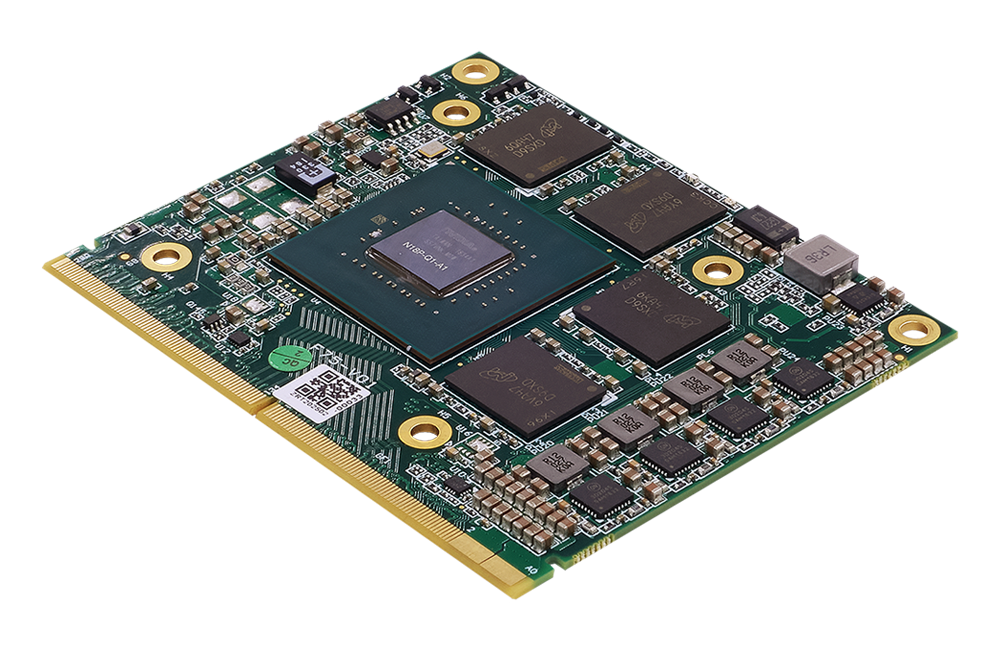

SKP1000_NVIDIA® Quadro® Embedded P1000_01

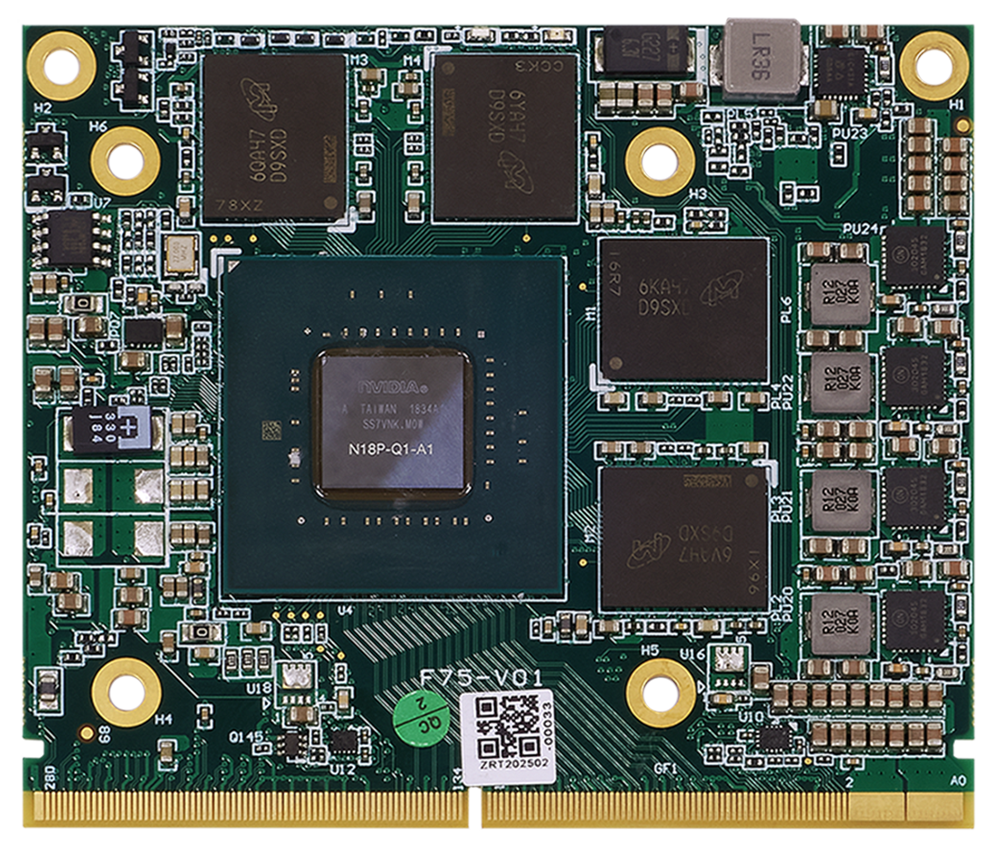

SKP1000_NVIDIA® Quadro® Embedded P1000_02
SKP1000_NVIDIA® Quadro® Embedded P1000_03

Mobile PCI Express Module with NVIDIA® Quadro® Embedded P1000

  • Powered by Quadro Embedded P1000 GPU
  • Standard MXM 3.1 Type A form factor (82 x 70 mm)
  • 512 NVIDIA® CUDA® cores
  • 1.8 TFLOPS SP peak performance
  • 4GB GDDR5 memory, 128-bit
  • 96GB/s maximum memory bandwidth
  • Support NVIDIA CUDA Toolkit 8.0, CUDA compute version 6.1, DirectX 12, OpenGL 4.5 and Vulkan 1.0
  • Technical Profile
  • Specifications
Introduction

MXM Graphic Solutions

Perfectron’s MXM modules feature the most scalability and upgradability for GPGPU computing performance and rigorous data processing capabilities. Based on the industrial standard Mobile PCI Express Module (MXM) Version 3.1 specification, our MXM modules are the compact, thinnest graphics module solution, delivering the latest and cutting-edge GPU benefits for your embedded systems. Its superior graphics performance, GPU computing and video capabilities are the ideal solution for performance demanding systems such as digital signage, medical image, defense, aerospace applications, and AI computing.

NVIDIA Quadro - extraordinary graphic performance

From stunning industrial design to advanced special effects to complex scientific visualization, Quadro® is the world’s preeminent visual computing platform. Quadro has the most advanced ecosystem of hardware, software and tools to transform the disruptive challenges of today into business successes of tomorrow.

Perfectron’s MXM modules feature advanced NVIDIA Quadro graphics cards with powerful Turing architecture technology, bringing amazing visual computing performance and power-efficiency into every embedded system.

Quadro P1000

The Quadro P1000 features a Pascal GPU with 640 CUDA core, 4 GB GDDR5 on-board memory and advanced display technologies in a low-profile form factor to deliver amazing graphics performance for demanding professional applications. Support for four 4K displays (4096x2160 @ 60Hz) with HDR color, Quadro P1000 gives you an expansive visual workspace to see your ideas come to life in stunning detail.

Mechanical
1000
Block Diagram
MXM GPU_P1000
MXM GPU
MXM GPU
Model




GPU Architecture

NVIDA Pascal

Graphics Processing Unit

NVIDA Quadro Embedded P1000m

NVIDA CUDA Core

512SP

Memory Size

4G 128 bit GDDR5

Graphics Clock

1354MHz/1392MHz(Boost)

Memory Clock

1502MHz(6.0 Gbps)

Single Precision FLOPS

1407 GFLOPS

Double Precision FLOPS

44.14 GFLOPS

Board Dimensions

MXM Graphics Module Version 3.1 Type A (70 X 82 mm)

Display Features

DP A: Display Port 1.3

DP B: Display Port 1.3

DP C: Display Port 1.3

DP D: Display Port 1.3

Board Power

58W

Operation System

Windows 10 64 bitLinux 64bit

Operation Temperature

0° to 55° C
