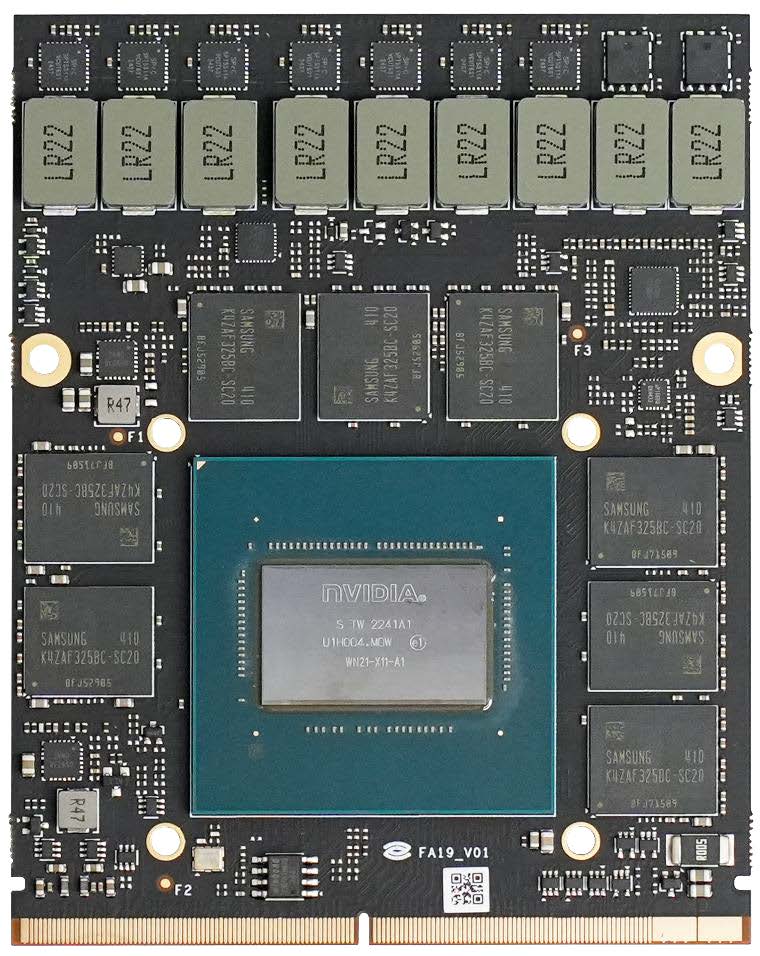

SK5000Ada
MXM GPU Module NVIDIA Quadro®RTX5000Ada, MXM 3.1 Type B, Four Channel output
- Power by NVIDIA Quadro RTX5000 Mobility
- NVIDIA CUDA technology with 9,728 Cores
- MXM 3.1 Type B / up to PCI Express 4.0 (x16)
- Support DirectX12, OpenGL4.6, OpenCL3.0
- Support for 4 outputs
- 16G 256bit GDDR6 High-Speed Memory
- Power Consumption: 115W
- Technical Profile
- Specifications
- Introduction
-
MXM Graphic Solutions
Perfectron’s MXM modules feature the most scalability and upgradability for GPGPU computing performance and rigorous data processing capabilities. Based on the industrial standard Mobile PCI Express Module (MXM) Version 3.1 specification, our MXM modules are the compact, thinnest graphics module solution, delivering the latest and cutting-edge GPU benefits for your embedded systems. Its superior graphics performance, GPU computing and video capabilities are the ideal solution for performance demanding systems such as digital signage, medical image, defense, aerospace applications, and AI computing.
NVIDIA Quadro - extraordinary graphic performance
From stunning industrial design to advanced special effects to complex scientific visualization, Quadro® is the world’s preeminent visual computing platform. Quadro has the most advanced ecosystem of hardware, software and tools to transform the disruptive challenges of today into business successes of tomorrow.
Perfectron’s MXM modules feature advanced NVIDIA Quadro graphics cards with powerful Turing architecture technology, bringing amazing visual computing performance and power-efficiency into every embedded system.

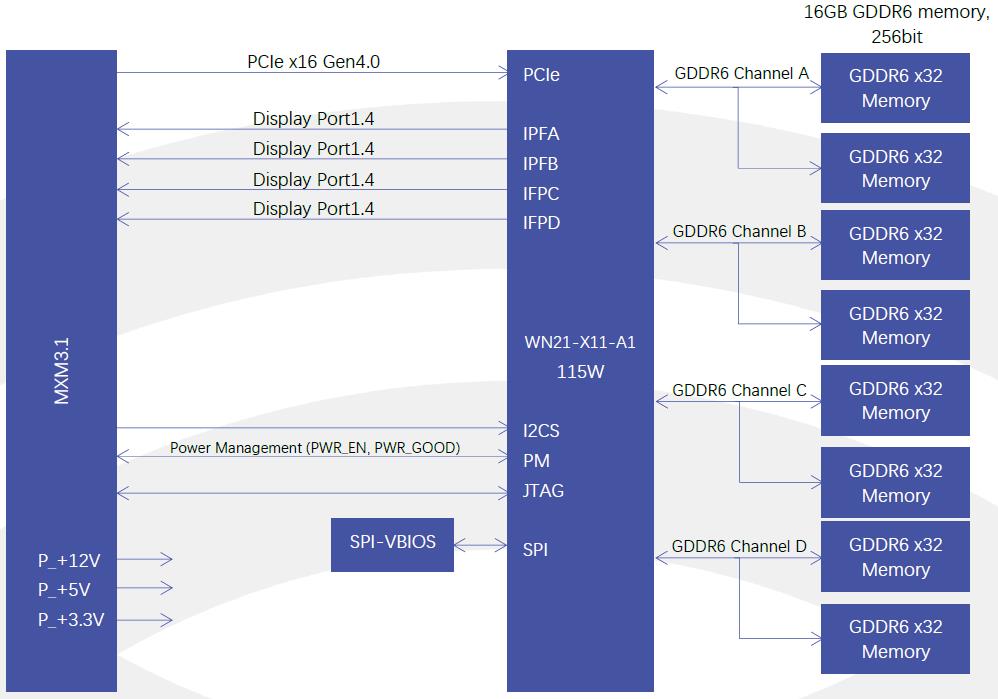

- Block Diagram

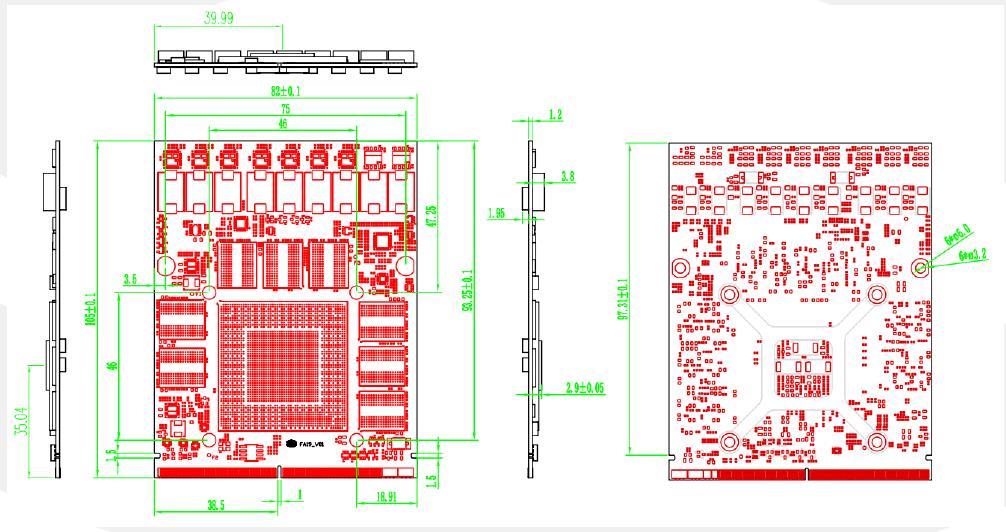

- Dimensions
|
Main |
|
|---|---|
|
GPU Architecture |
NVIDIA Ada Lovelace |
|
Graphics Processing Unit |
NVIDIA Quadro RTX5000 Mobility |
|
NVIDIA CUDA Core |
9,728 |
|
Bus Type |
MXM3 .1 / up to PCI Express 4.0 (x16) |
|
Graphics Clock |
1425MHz/2115MHz(Boost) |
|
Tensor Core |
304 |
|
RT Core |
76 |
|
Single Precision FLOPS |
37,014 GFLOPS |
|
Double Precision FLOPS |
691.6 GFLOPS |
|
OpenGL |
4.6 |
|
OpenCL |
3.0 |
|
DirectX |
12 Ultimate (12_2) |
|
Video Playback |
H.265, VC1, MPEG2 1080P |
|
Memory |
|
|
Size |
16G 256bit GDDR6 |
|
Clock |
2250MHz (18.0Gbps) |
|
Bandwidth |
576.0GB/s |
|
Display |
|
|
Display Features |
DP_A: Display Port1.4++ DP_B: Display Port1.4++ DP_C: Display Port1.4++ DP_D: Display Port1.4++ |
|
Max Resolution |
DP: 7680x4320@120Hz |
|
Environmental |
|
|
Board Power |
115W |
|
Board Dimensions |
MXM Graphics Module Version 3.1 Type B (105x82mm) |
|
VIN Range |
12~19V |
|
Operating Temperature |
0°C~45°C |
|
Storage Temperature |
-20°C~75°C |
|
Operating Humidity |
0°C~95% (non-condensing) |
|
Storage Humidity |
10~90% |
|
OS Support |
|
|
OS Support |
Windows 10/11 64bit、Linux bit |
