SK3500Ada
MXM GPU Module NVIDIA Quadro® MXM 3.1 Type B, Four Channel Output
- Power by NVIDIA Quadro RTX3500 Mobility
- NVIDIA CUDA Technology with 5,120 Cores
- MXM 3.1 Type B / up to PCI Express 4.0 (x16)
- Support DirectX12, OpenGL4.6, OpenCL3.0
- Support for 4 Outputs
- 12G 192bit GDDR6 High-Speed Memory
- Power Consumption: 115W
- Technical Profile
- Specifications
MXM GPU Module NVIDIA Quadro®RTX3500Ada
MXM 3.1 Type B, support 4 channel output

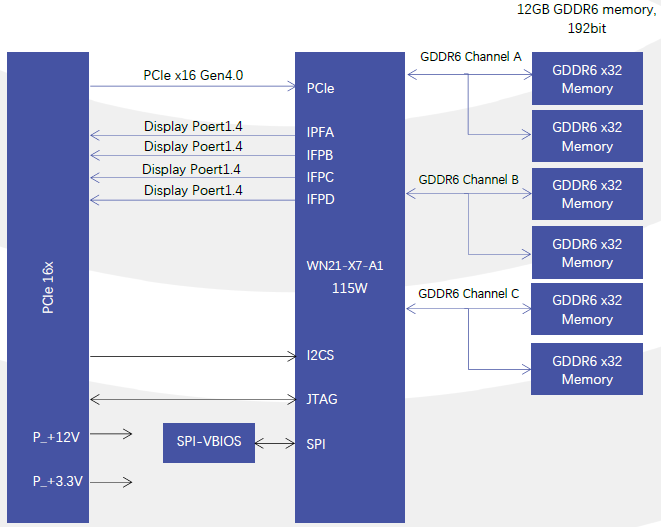

- Block Diagram

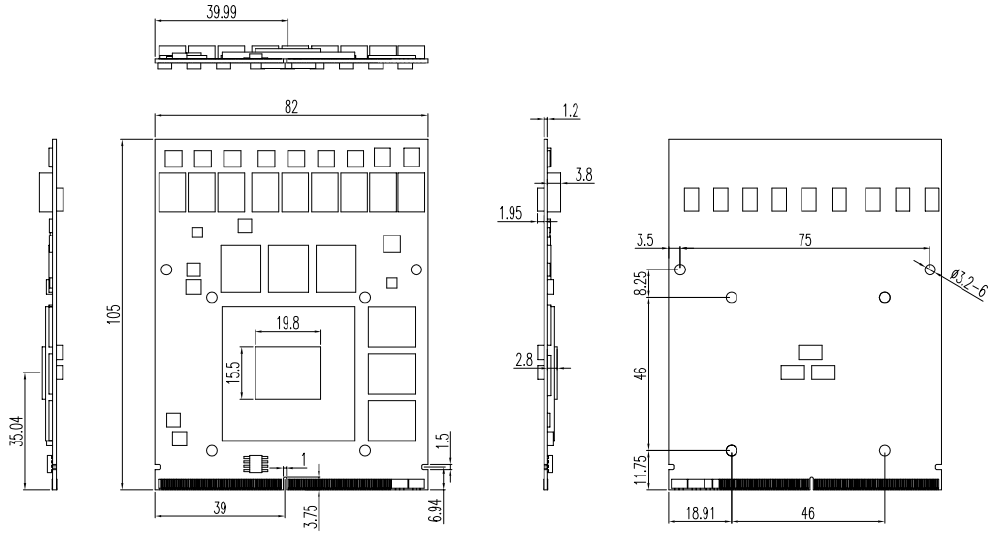

- Dimensions
-
|
Main |
|
|---|---|
|
GPU Architecture |
NVIDIA Ada Lovelace |
|
Graphics Processing Unit |
NVIDIA Quadro RTX3500 Mobility |
|
NVIDIA CUDA Core |
5,120 |
|
Bus Type |
MXM3 .1 / up to PCI Express 4.0 (x16) |
|
Graphics Clock |
1725MHz/2250MHz(Boost) |
|
Tensor Core |
160 |
|
RT Core |
40 |
|
Single Precision FLOPS |
23,845 GFLOPS |
|
Double Precision FLOPS |
372.5 GFLOPS |
|
OpenGL |
4.6 |
|
OpenCL |
3.0 |
|
DirectX |
12 Ultimate (12_2) |
|
Video Playback |
H.265, VC1, MPEG2 1080P |
|
Memory |
|
|
Size |
12G 192bit GDDR6 |
|
Clock |
2250MHz (18.0 Gbps) |
|
Bandwidth |
432.0GB/s |
|
Display |
|
|
Display Features |
DP_A: Display Port1.4++ DP_B: Display Port1.4++ DP_C: Display Port1.4++ DP_D: Display Port1.4++ |
|
Max Resolution |
DP:7680x4320@120Hz |
|
Environmental |
|
|
Board Power |
115W |
|
Board Dimensions |
MXM Graphics Module Version 3.1 Type B (105x82mm) |
|
VIN Range |
12~19V |
|
Operating Temperature |
0°C~45°C |
|
Storage Temperature |
-20°C~75°C |
|
Operating Humidity |
0°C~95% (non-condensing) |
|
Storage Humidity |
10~90% |
|
OS Support |
|
|
OS Support |
Windows 10/11 64bit、Linux bit |
