SK232
PCIe/104 expansion card SlimSAS x 8 to MXM carrier board
- 2 x SlimSAS x 8
- 1 x MXM 3.0 Slot
- 1 x VGA
- 4 x Mini Display Ports
- 1 x 2P Terminal for DC-IN 12V
- Extended Temp.: -40°C to 85°C
- Technical Profile
- Specifications
- Order Information
- Introduction
-
SK 232 , a SLimSAS x8 to MXM carrier board that is capable of bridging MXM interface to SlimSAS connector and it has been designed to withstand extended temperature from -40°C ~ 85°C.
SK303 has four M i ni Display ports and one VGA port ; and 12V input for MXM, 5V for VGA, 3V for Fan.

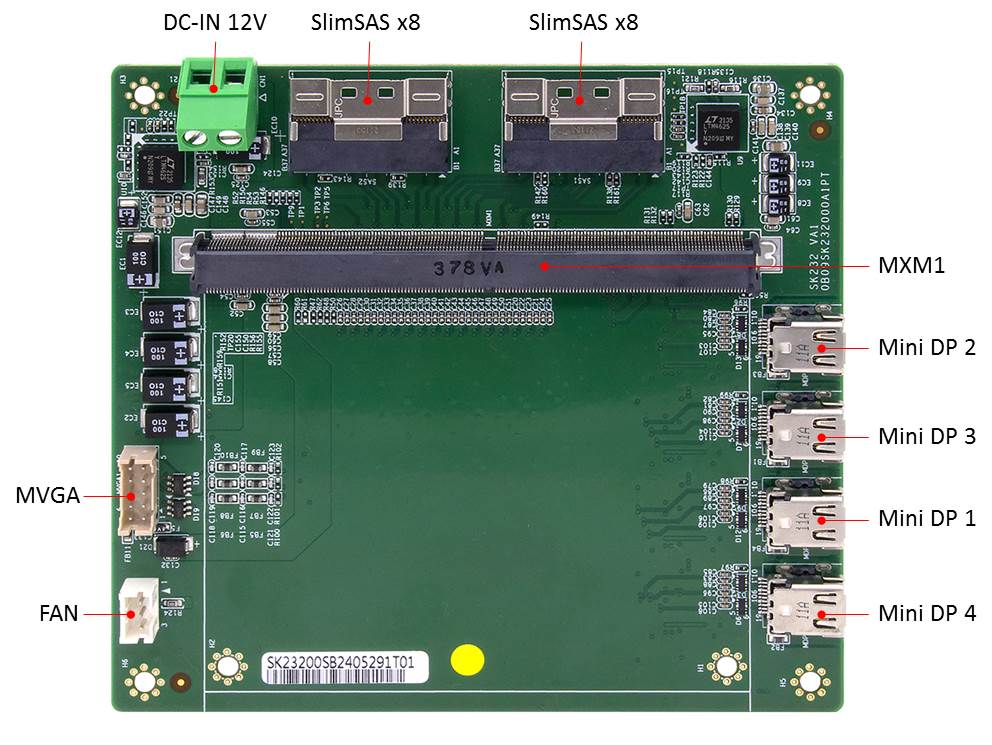

- Appearance
|
System |
|
|---|---|
|
Form Factor |
I/O module |
|
SlimSAS |
2 x Slim SAS x 8 |
|
MXM 3.0 slot |
1 x MXM slot |
|
VGA |
1 x |
|
Mini DP |
4 x |
|
Power Input |
1 x 2P Terminal (12V DC-IN) |
|
Max. Power |
12V x 10A = 120W |
|
Mechanical and Environment |
|
|
Dimension |
105 x 110 mm |
|
Operating Temp. |
-40°C to 85°C |
|
Storage Temp. |
-50°C to 90°C |
SK232
SlimSAS x 8 to MXM Graphic Card Carrier Module, Extended temp. -40 to 85°C
