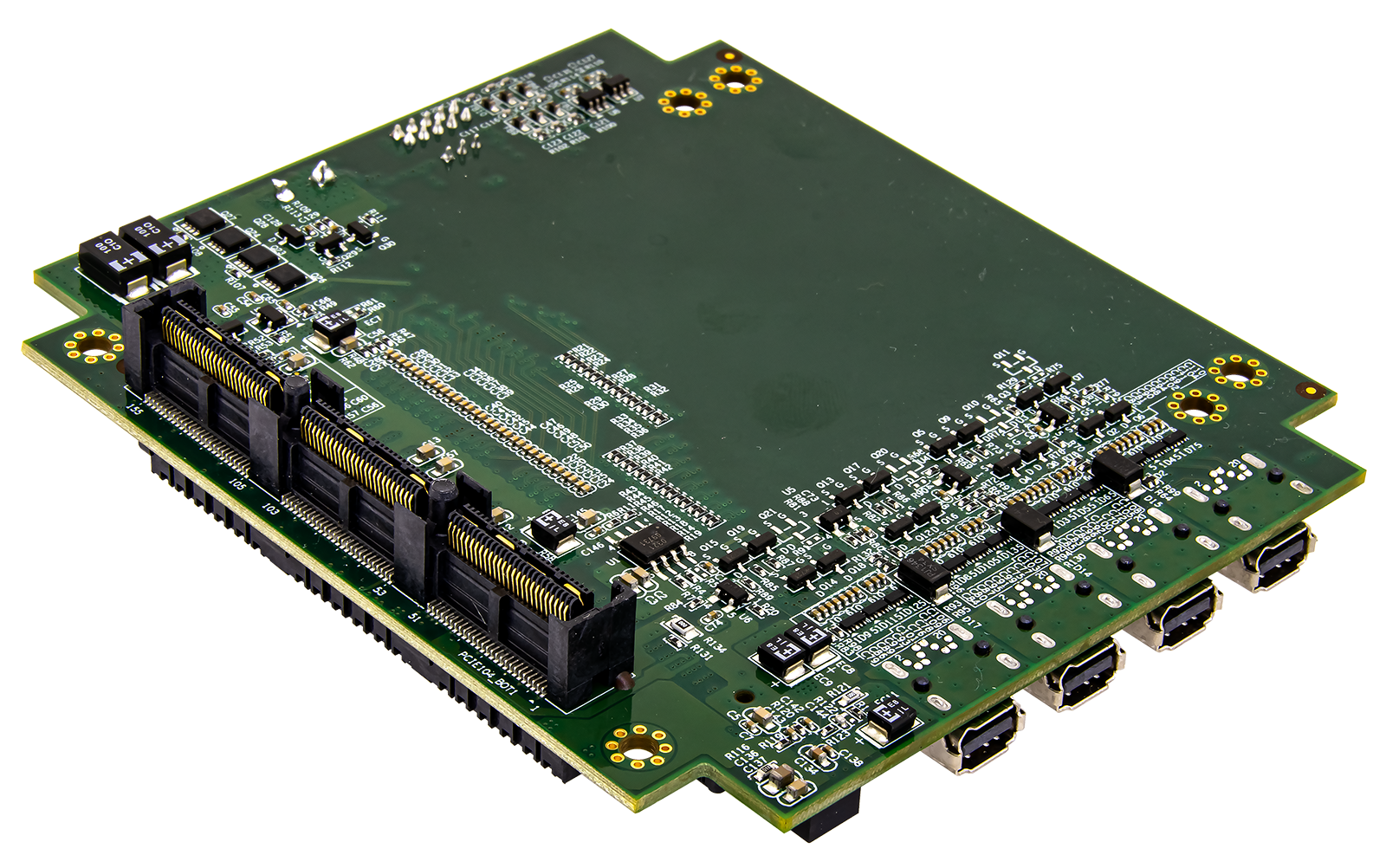

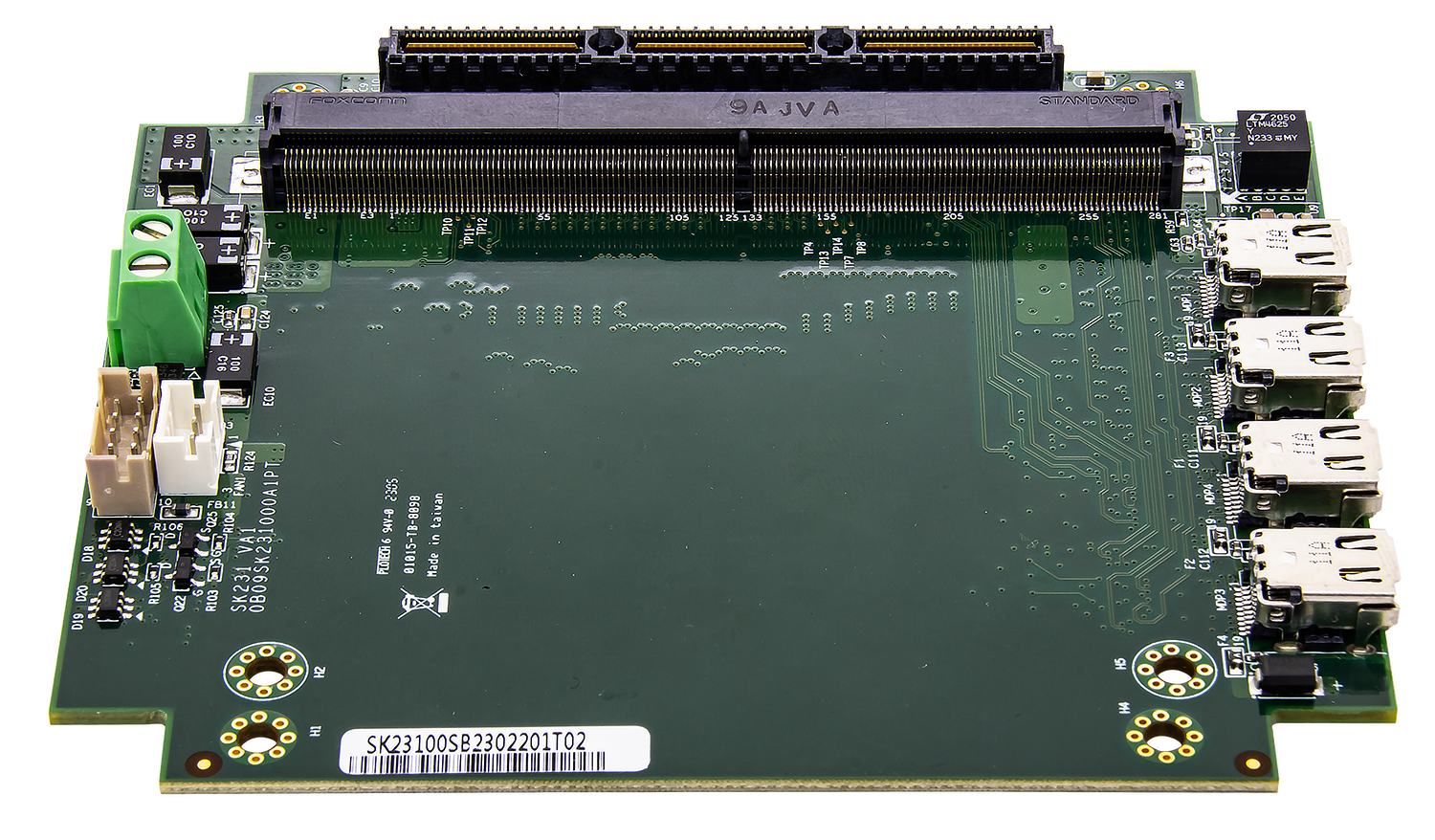

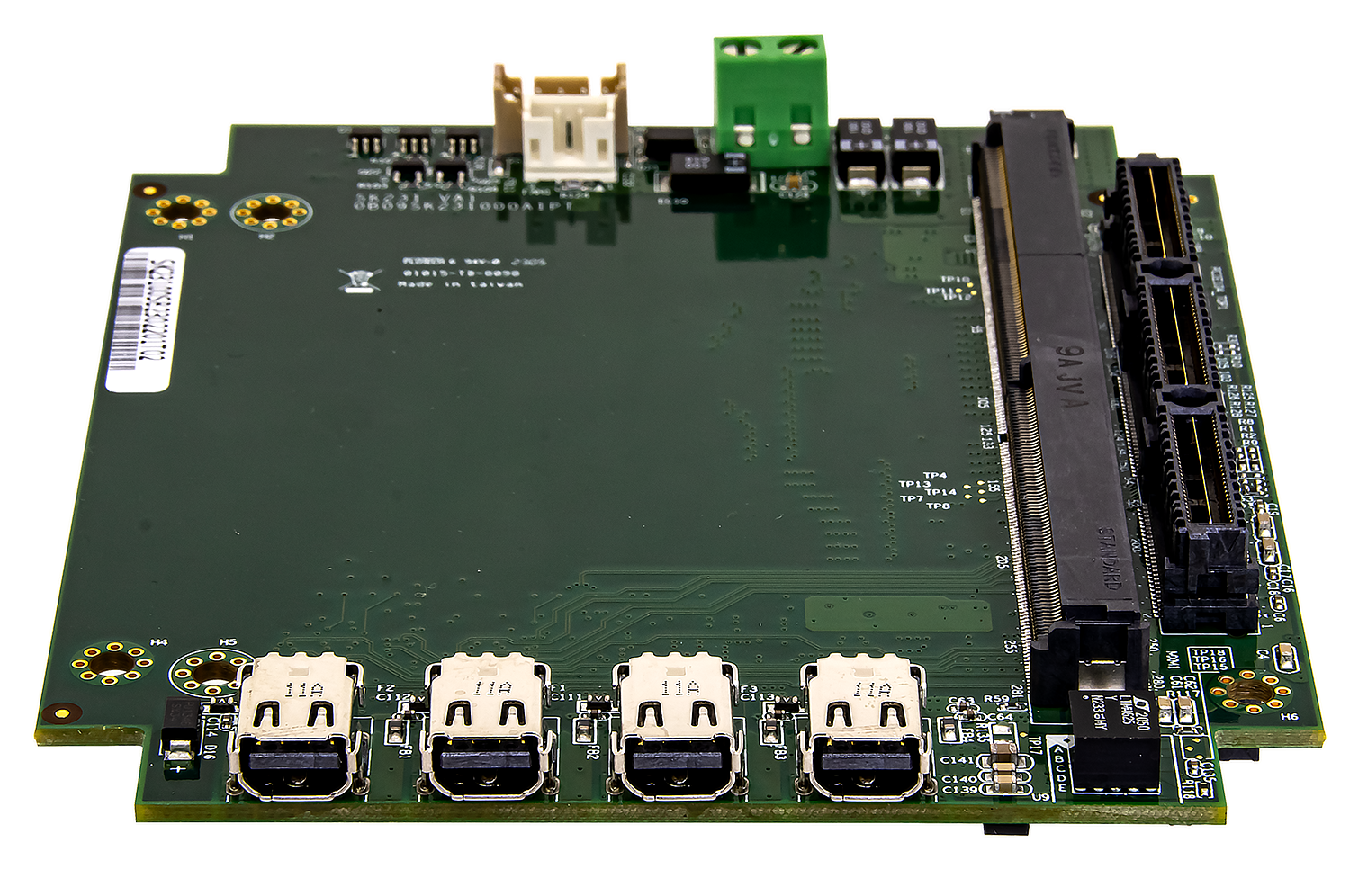

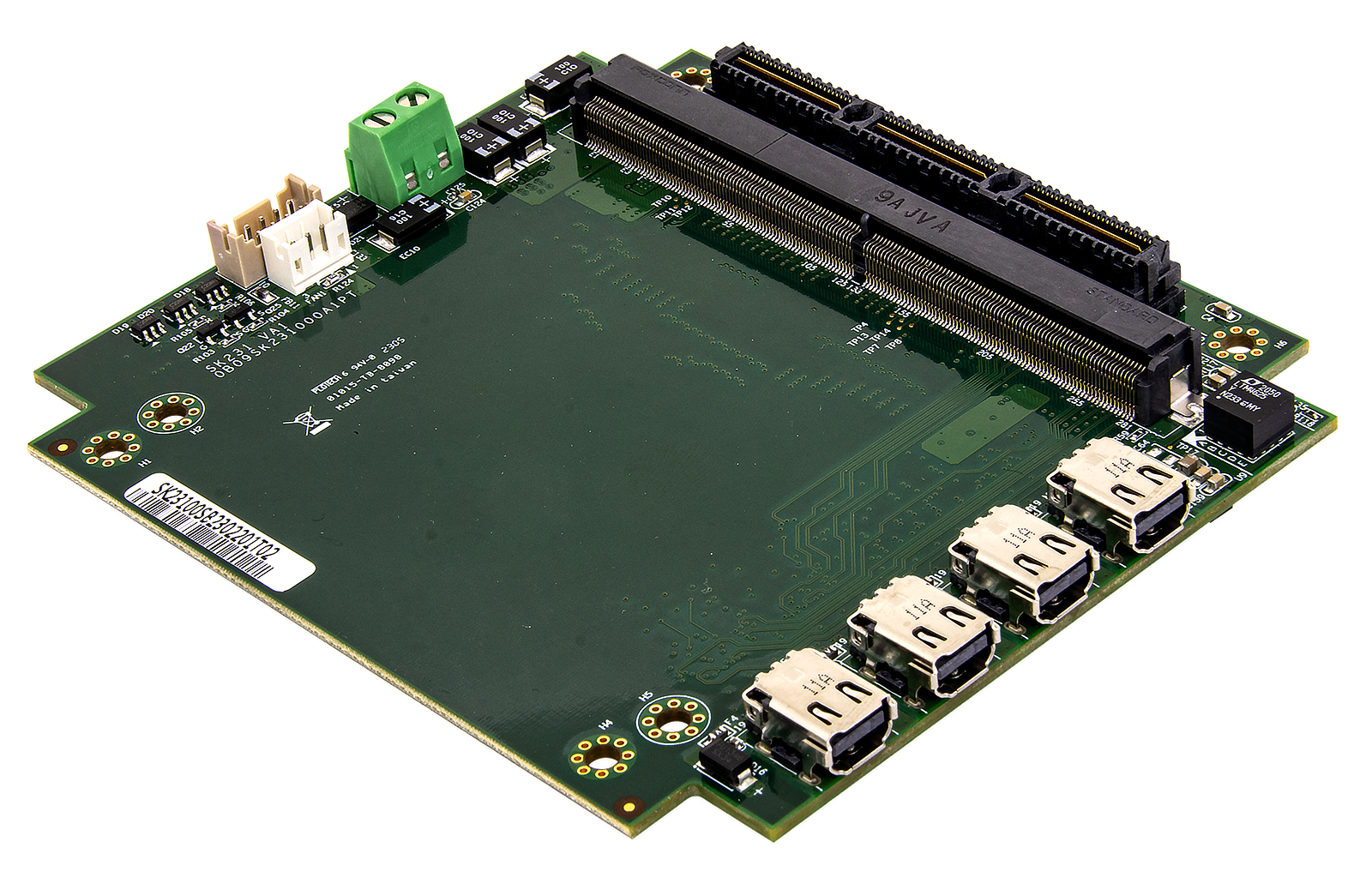

SK231
PCIe/104(Type 1) MXM GPU Carrier for 1 x VGA & 4 x Mini DisplayPort , 12V DC Input(non- power can support up to 120W)
- StackPC and PCIe/104 Complaint
- Utilizes PCIe x 16 Link
- 1 x VGA & 4 x Mini Display Port Module
- 12V DC Input(non- external power can support up to 120W)
- MXM 3.1 Graphic card support Type A and Type B MXM Graphic card support
- Support up to NVIDIA Quadro RTX A4500 / A2000
- Operating Temp. -40°C to 85°C
- Technical Profile
- Specifications
- Order Information
- Introduction
-
SK231, a PCIe/104 (StackPC) carrier module is designed to offer up to 4 independent displays by MXM interface under extended temperature from -40°C ~ 85°C. SK231 is equipped with 4 x mini DP, 1 x VGA (2 x 5 pin header) which can support GPU up to NVIDIA Quadro RTX A4500 / A2000. SK231 Directly output PCIe x 16 signal for multi-graphic processors demand applications like mission control room, intelligent information entertainment, 19” rack-mount multi node rugged servers, etc.
NVIDIA® Quadro RTX A4500 – (16GB GDDR6, 5,888 CUDA Cores, 115W)
NVIDIA® Quadro RTX A2000 – (8GB GDDR6, 2,560 CUDA Cores, 60W)

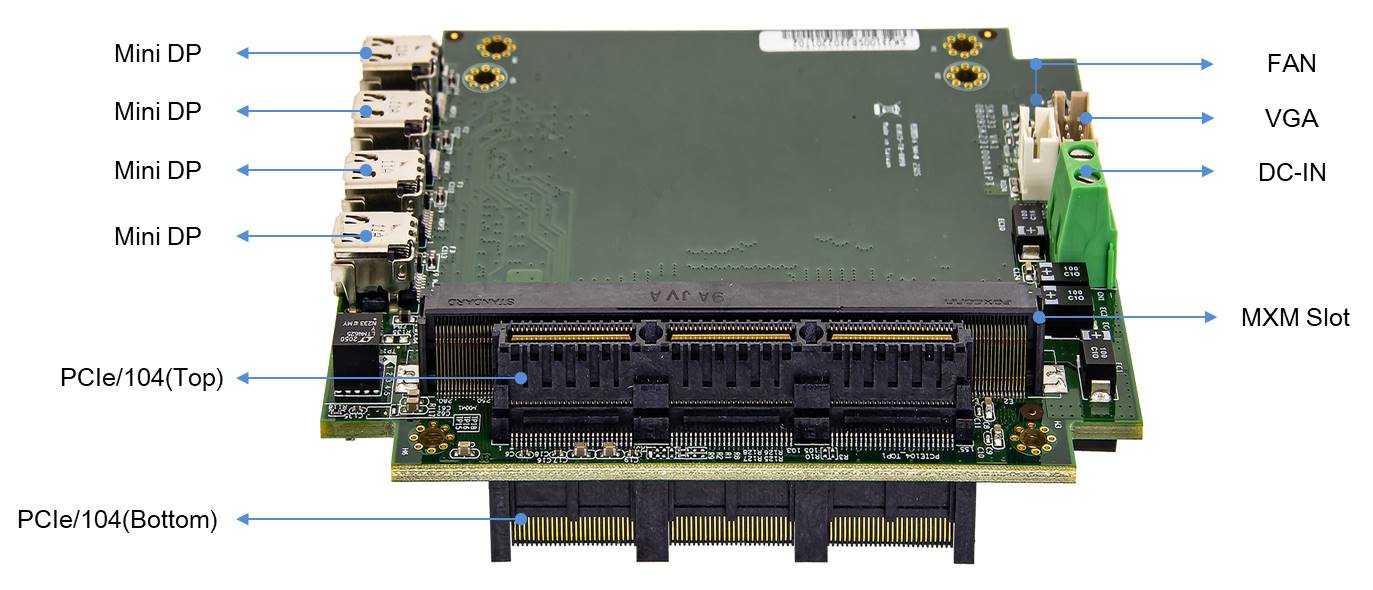

- Appearance
| Form Factor | |
|---|---|
| PCIe/104 Type I | |
| Top Side | |
| PCIe/104 Connector | 1 x PCIe/104 (Top) |
| MXM Connector | 1 x MXM Connector |
| VGA | 1 x pin header (Signal from MXM module) |
| DisplayPort | 4 |
| DC-IN | 1 x 2 pins Terminal Block |
| Bottom Side | |
| PCIe/104 Connector | 1 x PCIe/104 (Bottom) |
| Mechanical and Environment | |
| Dimension | 90 x 106 mm |
| Operating Temp. | -40°C to 85°C (ambient with air flow) |
| Power Requirement | |
| Power Requirement | 12V DC-IN(non-power can support up to 120W) |
SK231
PCIe104(TYPE1) MXM Graphic Card Carrier Module, Extended temp. -40 to 85°C
