SCH-401
2U 19" Power Automation Fanless System with Intel® 10th Gen (Cometlake-S) i3/i5/i7/i9 Processor, Extended range of Temperature Support from -20°C to 60°C
- Intel® 10th Gen Core™i3/i5/i7/i9 Cometlake-S Processor
- 4 x DDR4 2933 MHz U-DIMM up to 128GB
- 2 x RJ45 GbE LAN, 1 x IPMI, 4 x USB3.2, 4 x USB2.0
- 2 x DP, 1 x VGA, 1 x DVI-D
- 4 x 2.5" Easy swap SSD/HDD Tray(Support RAID 0,1,5,10)
- 3 x PCIe Expansion Slots
- TPM/FTDI Support
- Technical Profile
- Specifications
- Order Information
- Download
- Introduce
-
Gateways are rugged communication devices collecting numerous data, such as metering, status, events and fault report from any protection device while sending this information upstream to a control center, transferring commands issued from the control center to other devices. One example of a particular need for gateways is in the energy industry. The energy industry requires specific types of devices using specific protocols. With PLCs/PACs becoming popular in these applications, gateways has grown into a necessary part of Substation Automation Systems, and its reliability may affect the safety of whole system at a station level.
As a leading company specialized in energy related application, 7Starlake’s experienced team designed an extremely reliable Gateway system SCH400-AA, which is powered by 10th Generation Intelntel 10th Gen Xeon W-1290TE/Core i9-10900TE Processors, enabling highly efficient processing capability to deal with a large amount of data delivering between IEC-61850 devices and the Control Center. In advantage of other outstanding features, such as extended temperature -20~+60°C, dual 150W DC/DC redundant power supply, SCH400-AA is an undoubtedly best choice for Gateway application in Substation.
- Key Feature
-
(1)Security Redundancy
Integrating TPM module, operating systems can require an authentication to protect keys, data or systems.
(3)Rich communication Interface
In advantage of SCH-406 diverse I/O, 2 x RJ45 GbE LAN, 2 x RJ45 10GbE LAN, 1 x IPMI, 4 x USB3.2, 2 x USB2.0, 2 x DP,1 x VGA, 1 x DVI-D, the SCH400-AA system can satisfy all our clients.
(5)IEC-61850-3
The standardization of IEC-61850 enables the integration of the equipment and systems from different suppliers, reducing the burden on the configuration and maintenance of these systems. The protocol also meets utilities’ requirements for long-term system expandability. Thus, there are more and more electric companies perform power-system automation by using IEC-61850 protocol with Intelligent electronic devices (IED)
(7)Network Redundancy
PRP/HSR network will be required as an efficient and cost effective solution in order to construct a seamless/bumpless communication infrastructure to ensure maximum system availability.
(2)Power Redundancy
The design of wide power range keeps the system’s reliability and you can expect longer life-span as well. Sudden drop or surge of power posts absolutely no threat to this smart system.
(4)IEEE-1613
The widespread use of multi-functional intelligent electronic devices with advanced communications capabilities has resulted in a new trend in substation automation systems. The intelligent electronic devices exchange messages over the substation local area network. Detail environment and testing requirements for communications networking devices in electric power substations.
(6)Data Redundancy
RAID function supports an assortment to help protect or speed up the performance of a computer's disk storage. RAID 0/1/5/10 function makes SCH-401to archive it.
(8)Extreme Temperature
Copper heat spreader, pure copper heat pipe and aluminum heat sink, with all these benefits of fanless design. To ensure high reliability and stability while SCH-401 working under wide range temperature from -20°C up to +60°C. And, with SCH-401 special industrial extended range of temperature layout, it can also reduce the potential computer glitches caused by hardware incompatibility and losses of connectivity caused by shock and vibration.

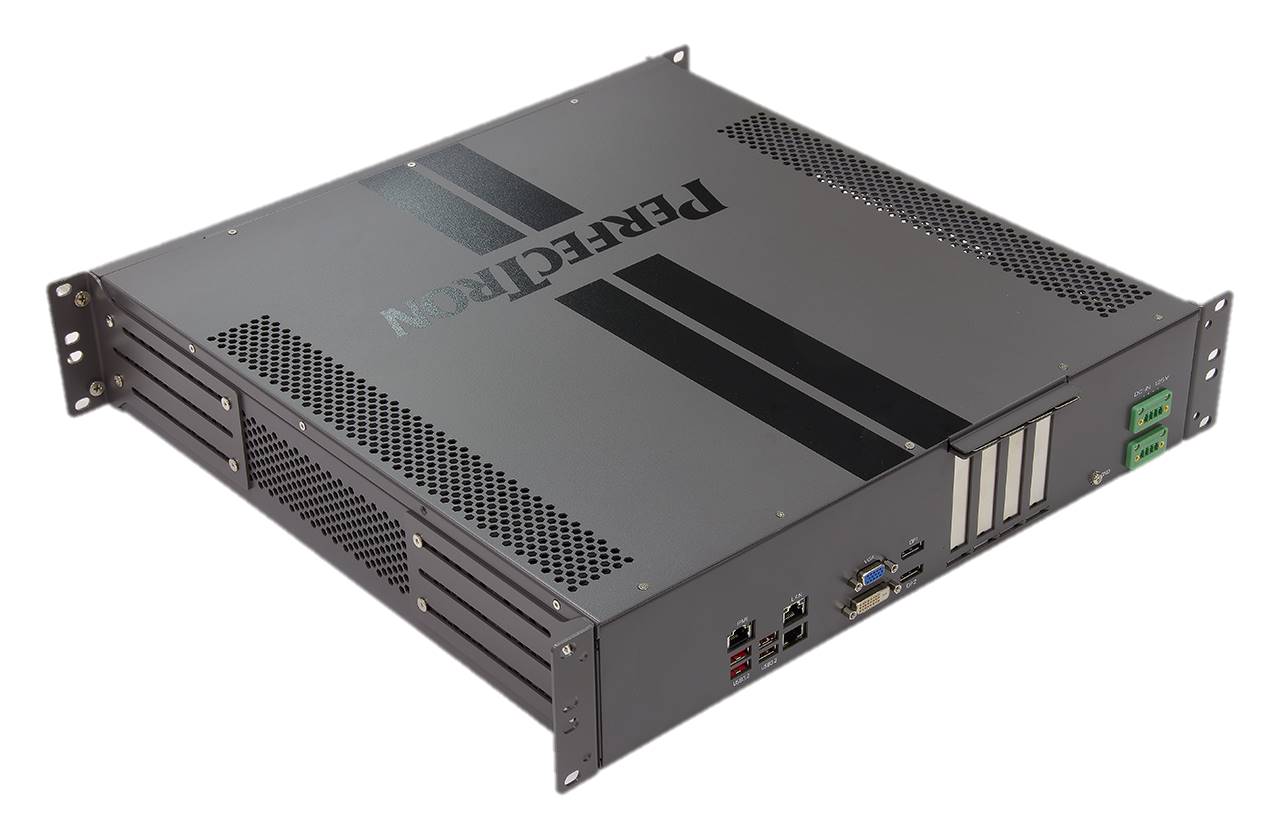

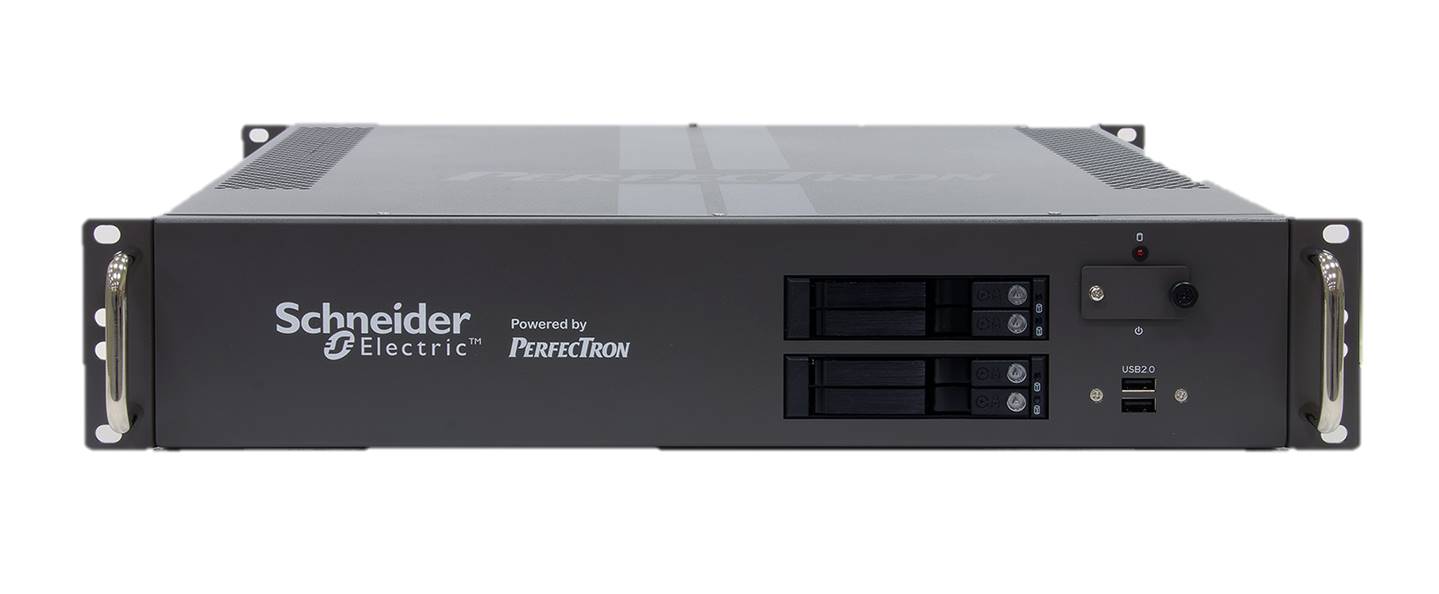

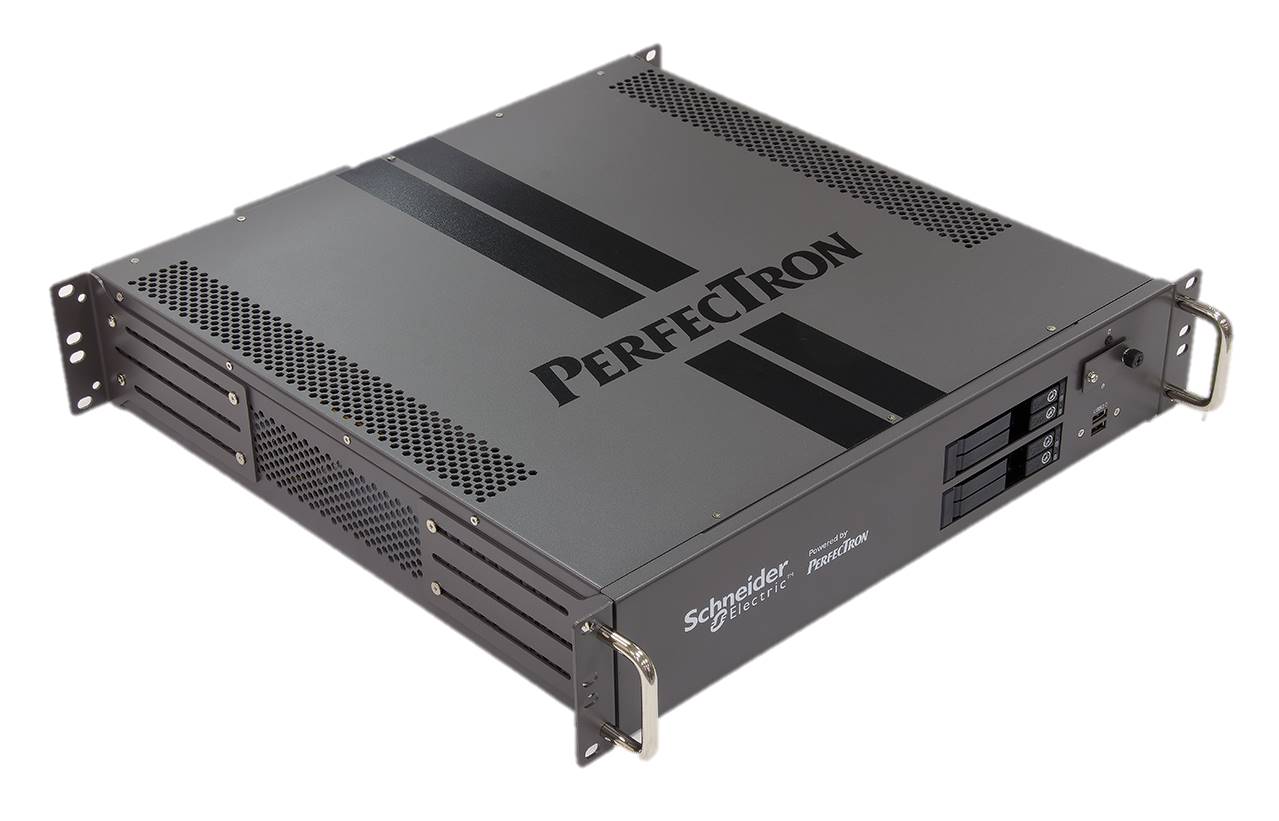

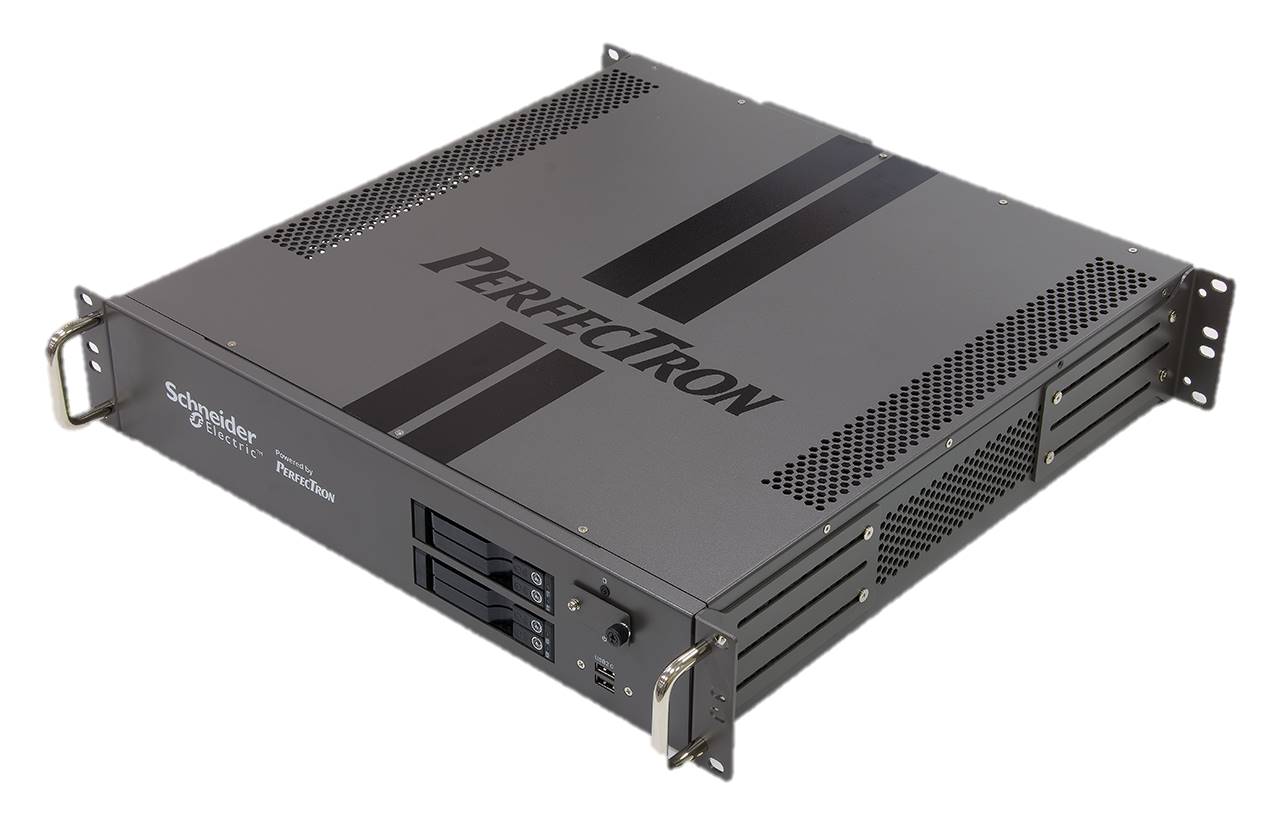

- Appearance
-
- Why IEC 61850 Is Necessary
-
Although there are lots of protocols worldwide for substation automation, IEC 61850 is the only one that supports systems networked together to perform intelligent transmission and distribution protection, monitoring, automation, metering, and control. The standardization of IEC 61850 enables the integration of the equipment and systems from different suppliers, reducing the burden on the configuration and maintenance of these systems. The protocol also meets utilities’ requirements for long-term system expandability. Thus, there are more and more electric companies perform power-system automation by using IEC-61850 protocol with Intelligent electronic devices (IED)
System |
|
|---|---|
| CPU | Intel® 10th Gen Core™ i3/i5/i7/i9 Processor up to 65W |
| Memory | 4 x DDR4 2933 MHz UDIMM up to 128GB |
| Expansion Slot |
1 x PCI-E 3.0 x 16 2 PCI-E 3.0 x 4 |
| Storage Device | 4 x 2.5" Easy swap HDD/SDD Tray (Support 0,1,5,10) |

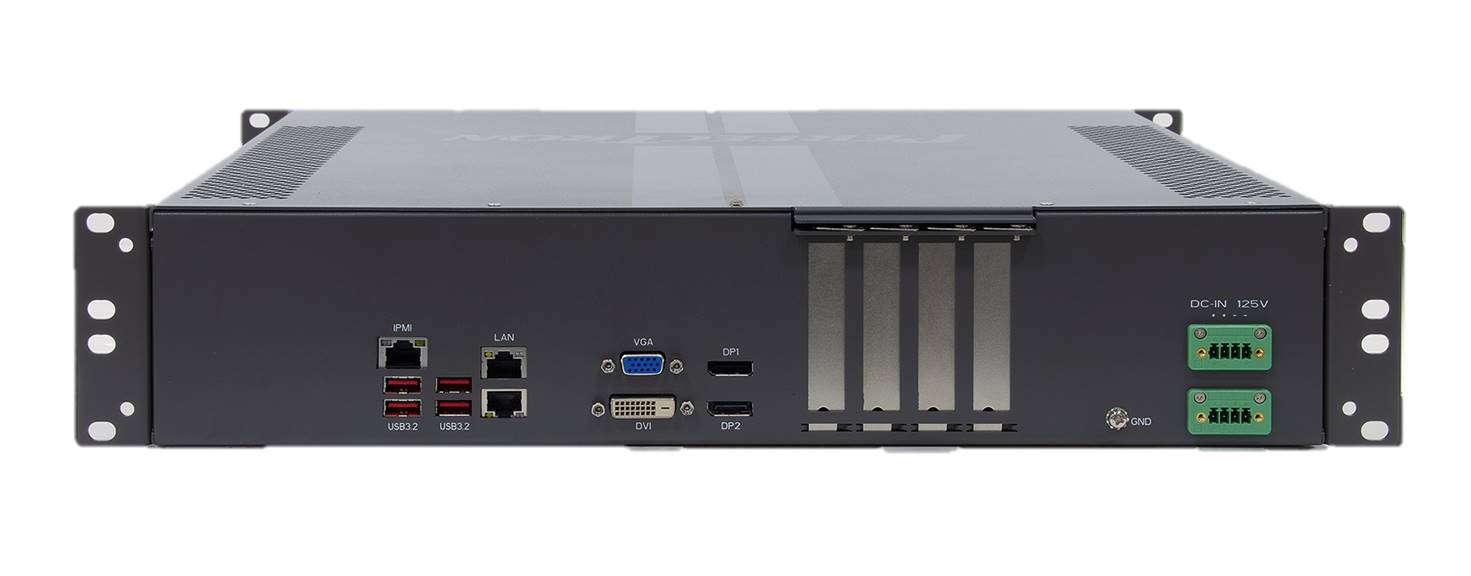

Rear I/O |
|
| Power Button | 1 x w/Indicator LED |
| USB | 2 x USB 3.0 |
| Swap Tray | 4 x Swap SSD Tray |
Front I/O |
|
| Power Input | 2 x 125V DC IN |
| LAN | 2 x RJ45 GbE LAN |
| USB | 4 x USB 3.2 |
| DisplayPort | 2 x DP |
| DVI | 1 x DVI-D |
| VGA | 1 |
Power |
|
| Power Input | 125V DC-IN, 2 x 200W DC/DC Redundant Power Supply |
Secutity |
|
| TPM | 1 |
Management |
|
| FTDI | 1 |
OS |
|
| Windows | Windows 10 64bit Enterprise / Windows 10 IoT 64bit Enterprise Windows 11 64bit Enterprise Windows Server 2019 64bit Windows Server 2022 64bit |
| Linux | Ubuntu18.04.3 64bit Desktop/ Ubuntu19.04.3 64bit Desktop(By Request) |
Mechanical and Environmental |
qqq |
| Dimension | 430 x 450 x 74 mm( W x D x H ) |
| Operating Temperature | -20°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Relative Humidity | 5% to 95%, non-condensing |
| System Design | Fanless |
| Mounting | 2U Rackmount |
| EMC | CE and FCC Certification |
| Green Product | RoHS, WEEE compliance |
SCH-401
2U 19” Power Automation Fanless Server Computer with Intel 10th Gen Core™ i3/i5/i7/i9 Processor, 2 × LAN(RJ45), 6x USB, 2 x DP, 1 x VGA, 1 x DVI-D, 1 x IPMI, DC-DC 72V/96V/125V DC-IN, 2 x 200W DC/DC 125V Redundant Power Supply, TPM/FTDI Support, Operating Temperature -20~+60°C
