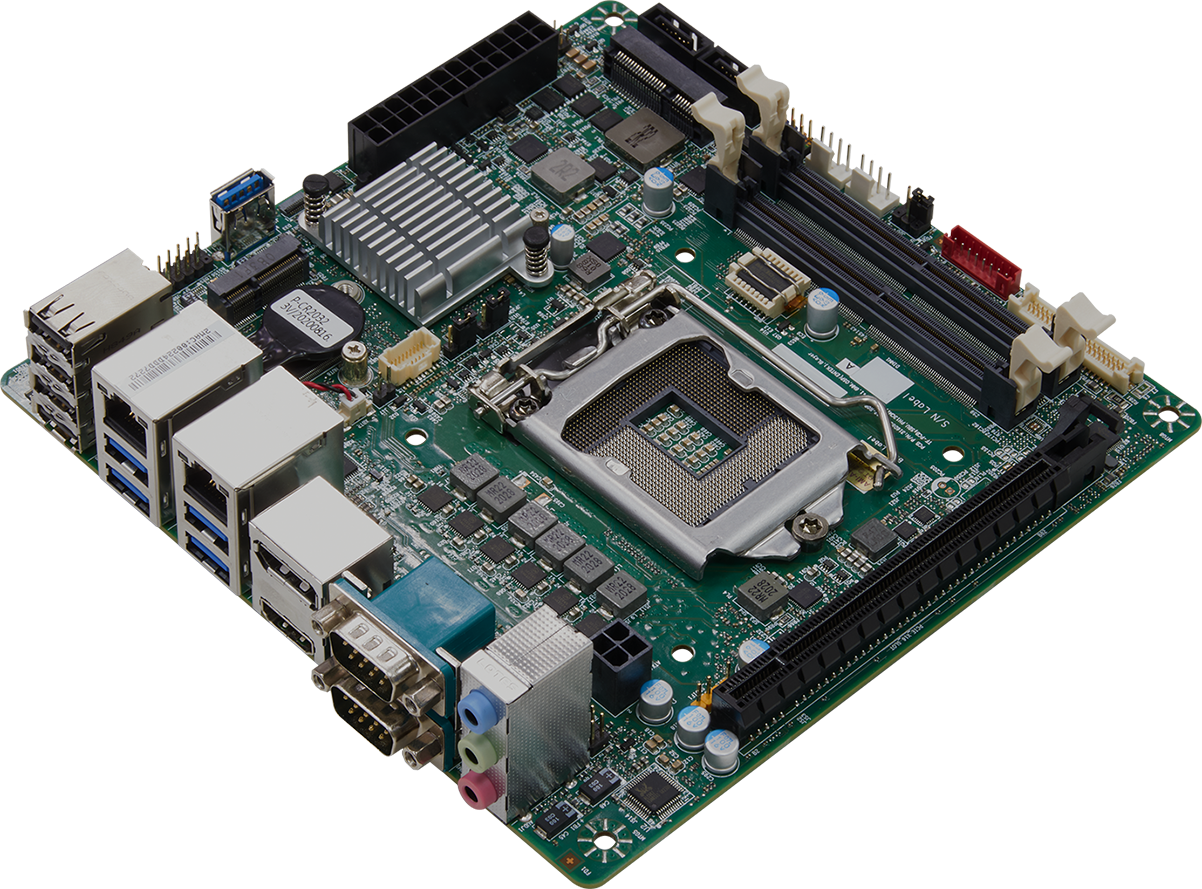

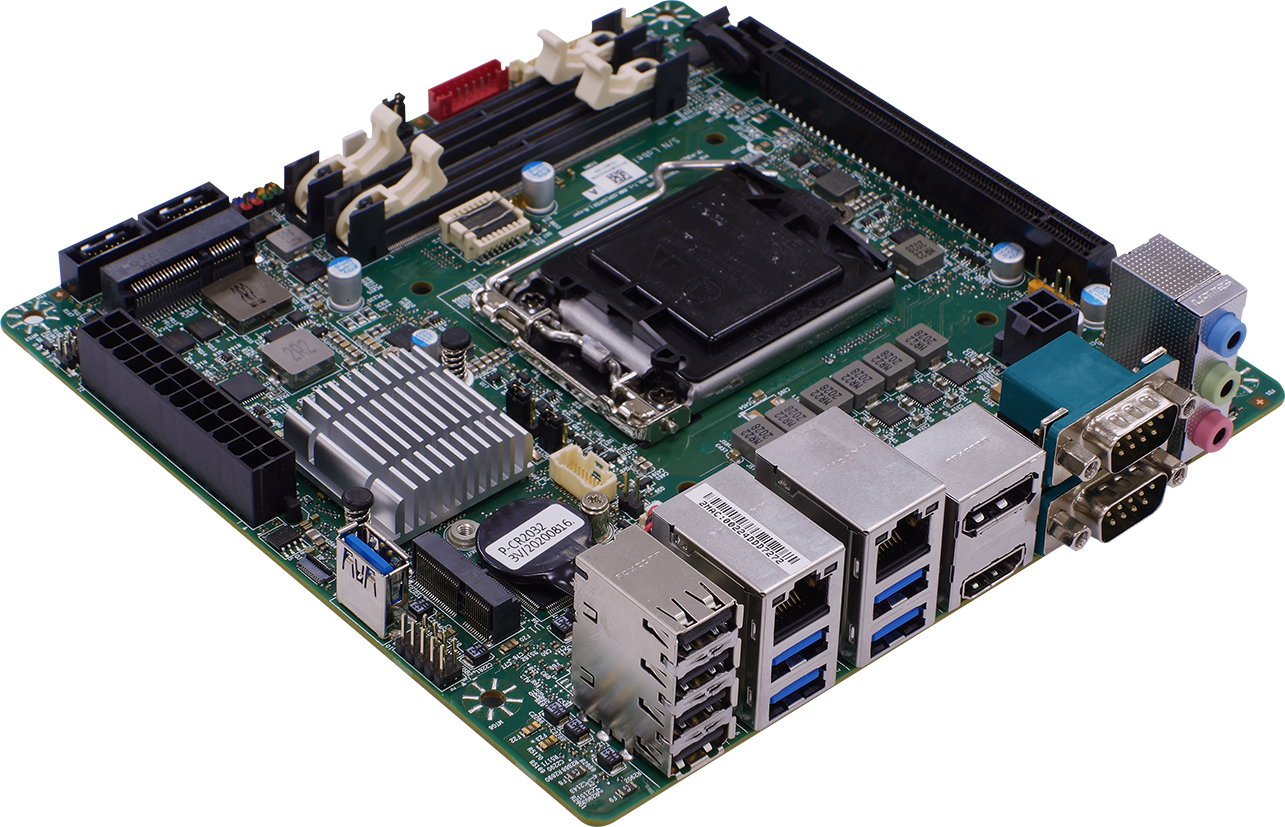

INS8370A
Intel® Comet Lake 10th Processor with Q470E / H420E Chipset Mini-ITX
- Up to Intel® Comet Lake 10th i9 35W & i5 95W LGA processor
- Intel® Q470E / H420E Chipset
- Intel® vPro technology support (Q470E)
- 2 x DDR4 SO-DIMM up to 64GB
- Support triple display for HDMI, DisplayPort and LVDS/eDP (Q470E)
- 1 x M.2 2280 M-key (NVME), 1 x M.2 2230 E-key (CNVi), 1 x mPCIe Full size, 1 x PCIe X16
- 2 x Intel® Gigabit Ethernet
- ATX or single 12V DC input
- Operating Temperature : ET : -20°C ~ 70°C ; UT : -40°C ~ 85°C
- Technical Profile
- Specifications
- Introduction
-
INS8370A, a powerful Mini-ITX solution driven by Intel® Comet Lake 10th Processor with Q470E / H420E Chipset for edge network, control plane and mid-range storage solutions requiring high per core performance. It features triple display (HDMI, DisplayPort, and LVDS/eDP), dual Intel gigabit Ethernet LAN ports, and multi expansion with PCIe 3.0 x16 slot, M.2 2230 E-Key /M.2 2242/2280 M-Key and a full sized Mini PCIe slot.
INS8370A can be deployed for a variety of workloads—from the data center to the intelligent edge—in network solutions, wireless base stations, mid-range storage solutions, industrial Internet of Things (IoT), dynamic web serving, dense/ rugged environments outside the data center, and, more.
|
System |
||
|---|---|---|
|
CPU |
10th Gen Intel® Comet Lake LGA1200 Socket Processor / 10core TDP Max 35W / 8ccore TDP 65W / (ATX support 6core 95W) |
|
|
System Memory |
DDR4 2933/2666/2400MHz / 2 x 260-pin SO-DIMM / Max. 64 GB (Non-ECC) |
|
|
Chipset |
Intel® Q470E (Support RAID 0 / 1 / 5, VPro) / colay H420E |
|
|
Graphics |
Intel® I219-LM Giga LAN + Intel® I210-AT Giga LAN |
|
|
Ethernet |
Intel® I219-LM Giga LAN + Intel® I210-AT Giga LAN |
|
|
Audio |
Realtek® ALC662 / ALC888 |
|
|
I/O Chipset |
Nuvoton NCT6126D(eSPI) |
|
|
TPM |
Nuvoton NPCT750AAAYX TPM2.0 (Optional) |
|
|
Eepansion Slot |
1 x M.2 2230 E-key(PCIe / USB) / PCIe 3.0 X16 slot / M.2 2242 / 2280 M-key (PCIeX4, SATA) / Mini PCIe Full size (PCIe / USB / SATA) |
|
|
BIOS |
AMI BIOS / 256 Mbit SPI |
|
|
H/W Monitor |
Temperature Monitor / Voltage Monitor / Fan Monitor |
|
|
Watchdog Timer |
1~255 steps by software program |
|
|
Smart Fan Control |
CPU Fan / System Fan |
|
|
Graphic |
||
|
HDMI |
Up to 4K (4096 x 2160) @30 Hz |
|
|
Displayport |
Up to 4K (4096 x 2304) @60 Hz |
|
|
LVDS |
Up to 1920 x 1200 @60 Hz |
|
|
eDP (Option) |
Up to 4K (4096 x 2304) @60 Hz |
|
|

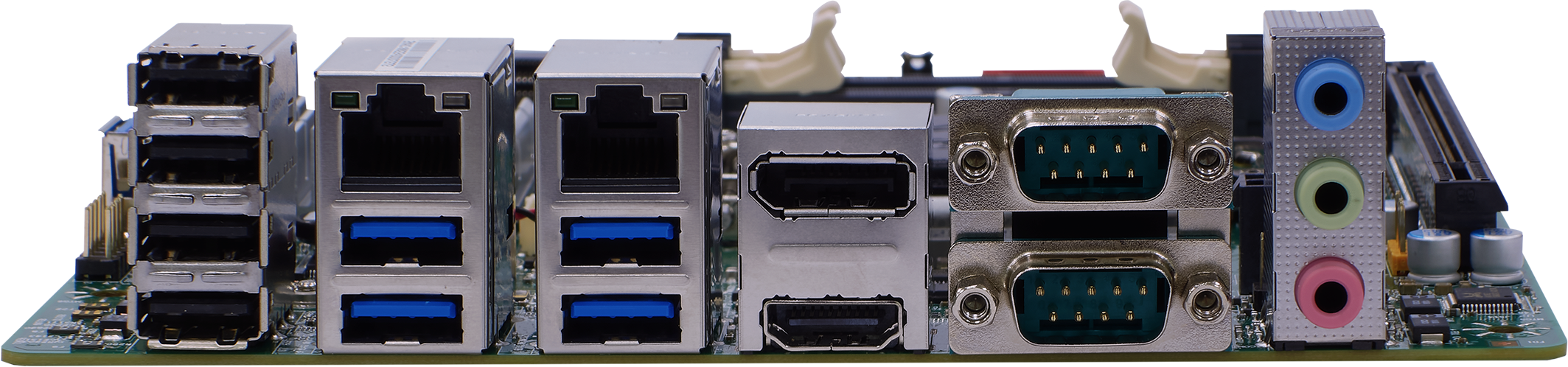

Rear I/O |
|
|
|
USB |
4 x USB 2.0 / 4 x USB 3.2 Gen 2 (Q470E) |
|
|
Display I/O |
1 x HDMI 1.4 / 1 x DisplayPort 1.2 |
|
|
Audio I/O |
1 x Mic-in / 1 x Line-out / 1 x Line-in |
|
|
Lan I/O |
2 x RJ-45 |
|
|
Serial Port |
2 x RS232 (one support RS422,/485) |
|
|
INTERNAL I/O |
||
|
Storage |
2 x SATAIII |
|
|
USB |
1 x USB 3.0 / 2 x USB 2.0 |
|
|
Display I/O |
1 x LVDS (*Optional eDP SKU available) / 1 x Backlight Connector |
|
|
GPIO |
1 x MiAPI Header (Programmable. Support 10-bit GPIO) |
|
|
Fan |
1 x 4-pin CPU Fan Header / 1 x 4-pin System Fan Header |
|
|
Power |
1 x ATX Power Connector / 1 x AT / ATX Mode Select Jumper / ATX 12V Power Connector (24-pin + 4-pin) |
|
|
Others |
1 x CMOS Jumper / 1 x Front Audio Header (Mic-in & Line-out) / 1 x panel power select header / 1x buzzer header / 1 x SPDIF |
|
|
POWER REQUIREMENT |
||
|
Power Input |
ATX 24-pin + 4-pin / 12V DC (3pin terminal connector via cable by connecting to ATX 24-pin + 4-pin ) |
|
|
Environmental |
||
|
Operating Temp. |
ET: -20°C ~ 70°C (-4°F ~158°F) UT: -40°C ~ 85°C (-40°F ~185°F) |
|
|
Storage Temp. |
-40°C ~ 85°C (-40°F ~185°F) |
|
|
Operating Hum. |
10% ~ 95% R/H (Non-condensing) |
|
| Standard Compliance | ||
| Standard Compliance | CE / FCC | |
|
OS |
||
|
OS Support |
Windows® 10 64-bit / Linux (support by request) |
|
|
|
|
|
