INS8325A

Thin Mini-ITX Form Factor Intel® Alder Lake - N processors

Intel® Alder Lake-N N50(2C) / Atom x7425E(8C) / i3-N305(8C/8T) BGA Type Processor
1 x DDR5 SO-DIMM up to 16GB
Triple display for LVDS, HDMI and Display Port
Support 1 x PCIe Gen3 x 1 slot, 1 x M.2 3042/3052 B-Key(USB2.0, PCIe x 1), 1 x M.2 2230 E-Key(PCIe x 1, USB2.0), 1 x M.2 2280 M-Key(SATAIII), 1 x SATAIII
2 x Intel®i226-V 2.5Gigabit Ethernet
1x USB3.2 Gen2, 3x USB3.2 Gen1, 4 x USB2.0, 1 x USB2.0 Vertical Type A, 4 x COM and 1 x MiAPI (configurable digital I/O)
4 x COM (3 x RS232, 1 x RS232/422/485) ; 1 x MiAPI (Configuarable DIDO)
8-24V Wide Voltage Power Input
Operating Temperature : ET : -20°C ~ 70°C ; UT : -40°C ~ 85°C

Download

Datasheet

Manual

Get A Quote

Technical Profile
Specifications
Order Information

Introduction: INS8325A is a powerful rugged Mini-ITX solution driven by Intel® Alder Lake-N BGA Type Processor.

The 12th Generation Intel® Core™ processor platform marked a significant leap forward with the introduction of the innovative performance hybrid architecture. This groundbreaking design combines two distinct core types on a single chip: Performance-cores (P-cores) and Efficient-cores (E-cores). The advantage of this architecture is the ability to optimize both performance and power efficiency. P-cores are dedicated to handling resource-intensive tasks, while E-cores efficiently manage lighter workloads. However, not every application demands the high processing power provided by P-cores. In response, cost-effective entry-level platforms based on the Gracemont CPU microarchitecture were developed, offering a unique combination of performance, affordability, and low power consumption.

This new generation, formerly known as Alder Lake-N, features a range of processors, including the Intel® Processor N-series, Intel Atom® Processor X Series, and most notably the Intel® Core™ i3 Processor N-series. The primary theme across this collection is power efficiency, with CPUs spanning from 6W to 15W in thermal design power (TDP), corresponding to various processing capacities. These processors cater to a broad spectrum of applications, from the 2-core Intel N50 to the robust 8-core Intel® Core™ i3-N305, offering a versatile processor line suitable for powering solutions across different markets.

Alder Lake-N ATOM Processor

New Architecture for Atom CPU

DDR5 SODIMM Memory

Block Diagram

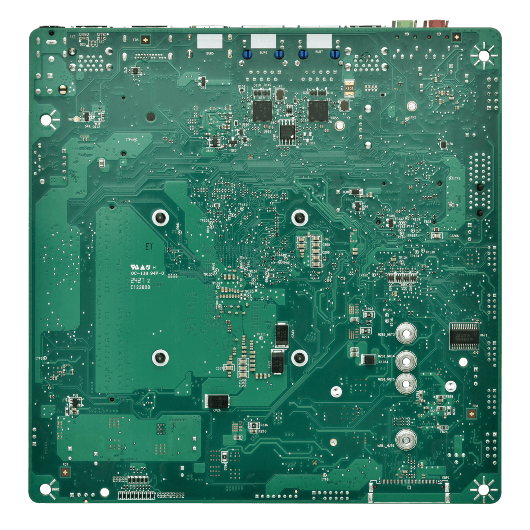

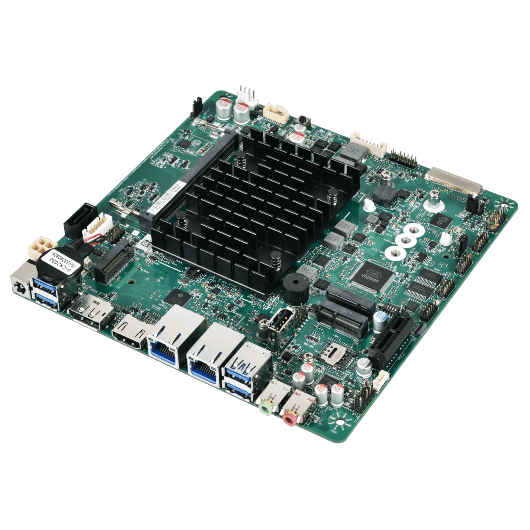

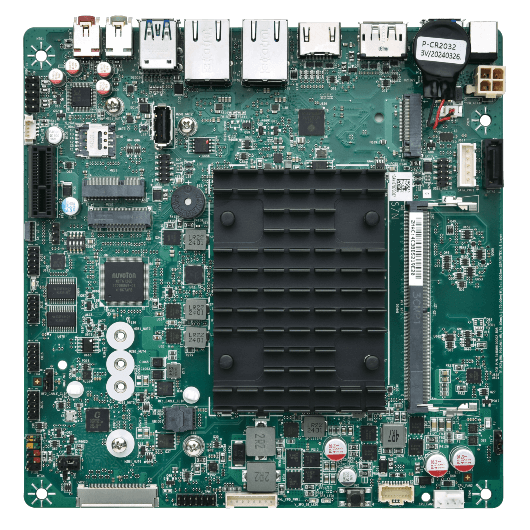

Appearance

System
CPU	Intel® Alder Lake N : N50(2C/6M Cache, up to 3.40 GHz , TDP Core i3-N305(8C/6M Cache, up to 3.80 GHz, TDP 15W) Atom x7425E 4C/6M Cache, up to 3.40 GHz, TDP 12W)
Memory type	DDR5 4800 MHz / 1 x 260 pin SO DIMM / Max. 16 GB (Non ECC)
Chipset	Intel® SoC Integrated
Graphic	Intel® HD Graphics
TPM	Nuvoton NPCT750AABYX TPM2.0 (Optional)
I/O Chipset	Nuvoton NCT6126D
Watchdog	1-255 sec. or 1-255 min. software programmable and can be generate system reset
Display
Display Port	Up to 4K (4096 x 2160) @30 Hz
HDMI	Up to 4K (4096 x 2160) @60 Hz
LVDS	Up to 1920 x 1200 @60 Hz
Audio
Codec	Realtek® ALC888
Expansion
Expansion Slot	- i3-N305 & x7425E : PCIe 3.0 x 1 slot /M.2 3042 / 3052 / 2242 / 2260 / 2280 B key (USB3.1 Gen 1, USB2.0, SATAIII, PCIex1) with nano SIM slot support M.2 M Key NVMe SSD ; M.2 2230 E key (PCIex1, USB2.0) Support CNVi. - N50 : PCIe 3.0 x 1 slot M.2 3042 / 3052 / 2242 / 2260 / 2280 B key ( USB2.0, SATAIII, PCIex1) with nano SIM slotNot support; M.2 2230 E key (PCIex1, USB2.0)*Support
Ethernet
Chipset	2 x Intel® I226V 2.5 Giga LAN

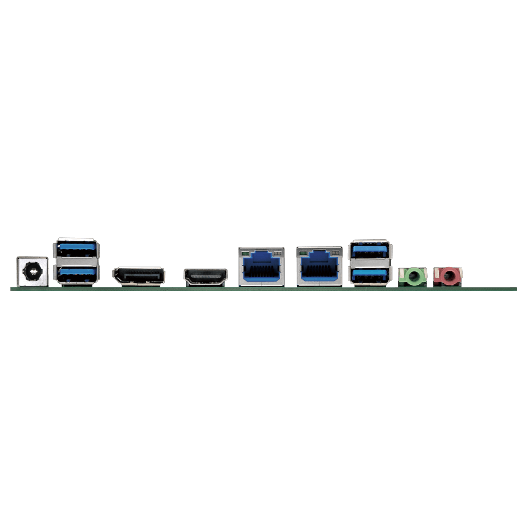

Front I/O
USB	- i3-N305 & x7425E : 1 x USB 3.2 Gen2, 3 x USB 3.2 Gen1 - N50 : 1 x USB 3.2 Gen2, 1 x USB 3.2 Gen1, 2 x USB 2.0
Display I/O	1 x HDMI1.4, 1 x DisplayPort1.4
LAN	2 x 2.5GbE RJ45
DC IN	1 x DC-IN Jack
Internal I/O Header (No Edge I/O Needed)
SATA	1 x SATA power header / 1 x SATAIII (Multiplexed with M.2 M Key)
USB	- I3-N305 & 7425E : 4 x USB 2.0 / 1 x USB2.0 Vertical Type A - N50 : 2 x USB 2.0
Display I/O	1 x LVDS 1 x Backlight Connector
Audio I/O	1 x Speaker Header 1 x Front Audio Header (Mic-in / Line-out)
Serial Port	- i3-N305 & x7425E : 1 x RS232/RS422/485/3 x RS232 - N50 : 3 x RS232
Parellel Port	1 x MiAPI Header
FAN	1 x 4 pin CPU Fan Header
Power	1 x AT / ATX Mode Select Jumper / 1 x ATX 4 pin Power Connector
Others	1 x CMOS Jumper / 1 x Chassis Front Panel Header (2 x 5 pin) / 1 x Front Audio Header (Mic in & Line out) / 1 x Buzzer / 1 x Panel power select header (default 3.3V, option to 5V, 12)
Mechanical and Environmental
Form Factor	Mini ITX
Power Type	DC-IN 8~24V/ ATX 4 pin Power Connector
Dimension	170mm x 170mm
Operating Temperature	ET : -20°C ~ 70°C UT : -40°C ~ 85°C
Storage Temperature	-40°C ~ 85°C
Relative humidity	10% to 95%, non-condensing
Standard Compliance
Standard Compliance	CE/FCC
OS
OS Support	Support Windows ® 10 /11 64 bit, Linux(Support by request)

INS8325A-01ET

Thin MiniITX MB withIntel® Alder Lake-N N50 Processor, 1 x DDR5 SO-DIMM up to 16GB, 1 x DP, 1 x HDMI, 2 x LAN , 4 x USB3.1, 1 x Mic-in & 1 x Line-out, Operation Temperture -20 ~ 70 °C , RoHS

INS8325A-01UT

Thin MiniITX MB withIntel® Alder Lake-N N50 Processor, 1 x DDR5 SO-DIMM up to 16GB, 1 x DP, 1 x HDMI, 2 x LAN , 4 x USB3.1, 1 x Mic-in & 1 x Line-out, Operation Temperture -40 ~ 85 °C , RoHS

INS8325A-02ET

Thin MiniITX MB withIntel® Alder Lake-N Core i3-N305 Processor, 1 x DDR5 SO-DIMM up to 16GB, 1 x DP, 1 x HDMI, 2 x LAN , 4 x USB3.1, 1 x Mic-in & 1 x Line-out, Operation Temperture -20 ~ 70 °C , RoHS

INS8325A-02UT

Thin MiniITX MB withIntel® Alder Lake-N Core i3-N305 Processor, 1 x DDR5 SO-DIMM up to 16GB, 1 x DP, 1 x HDMI, 2 x LAN , 4 x USB3.1, 1 x Mic-in & 1 x Line-out, Operation Temperture -45 ~ 85 °C , RoHS

INS8325A-03ET

Thin MiniITX MB withIntel® Alder Lake-N ATOM x7425E Processor, 1 x DDR5 SO-DIMM up to 16GB, 1 x DP, 1 x HDMI, 2 x LAN , 4 x USB3.1, 1 x Mic-in & 1 x Line-out, Operation Temperture -20 ~ 70 °C , RoHS

INS8325A-03UT

Thin MiniITX MB withIntel® Alder Lake-N ATOM x7425E Processor, 1 x DDR5 SO-DIMM up to 16GB, 1 x DP, 1 x HDMI, 2 x LAN , 4 x USB3.1, 1 x Mic-in & 1 x Line-out, Operation Temperture -40 ~ 85 °C , RoHS
