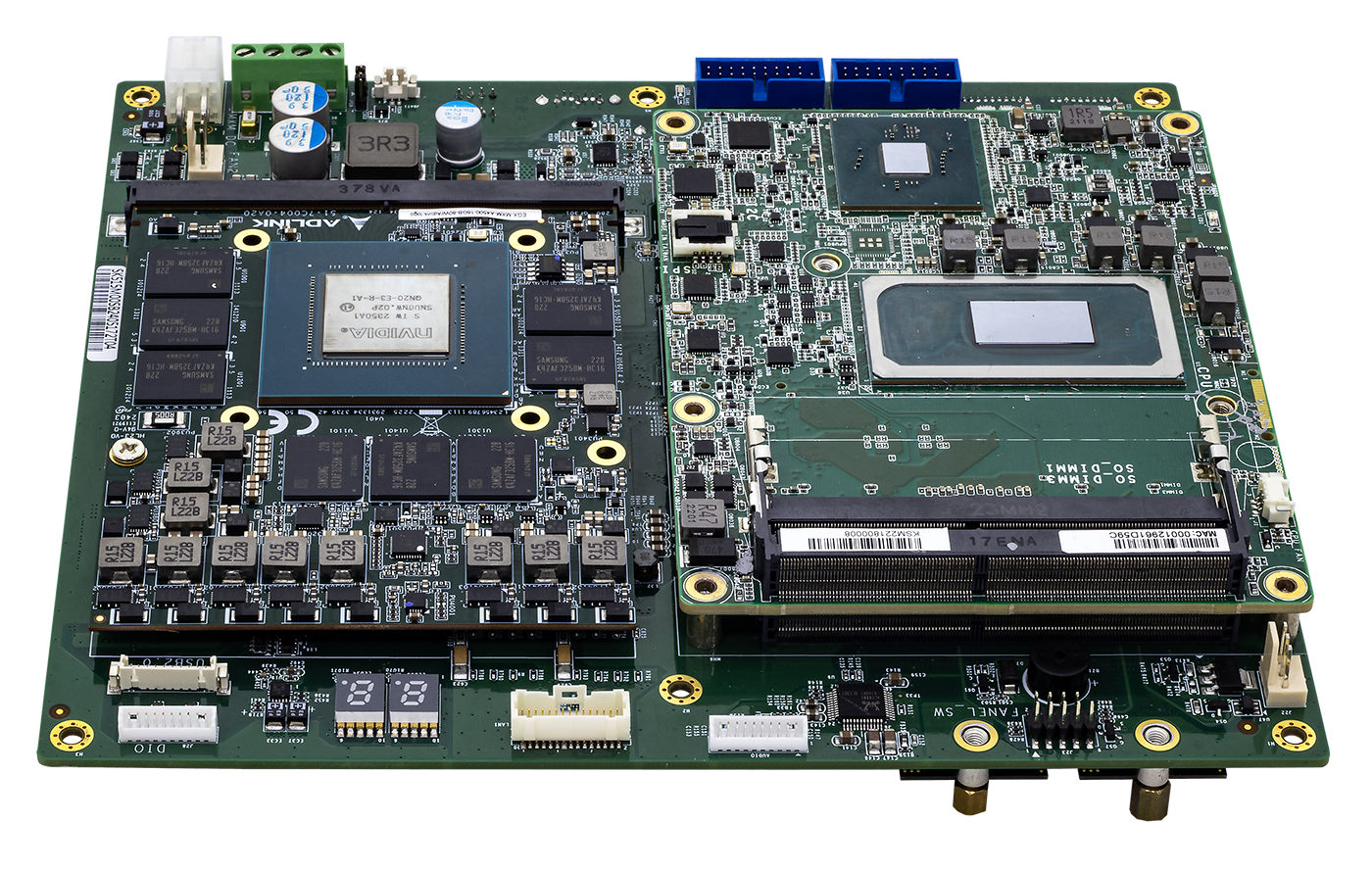

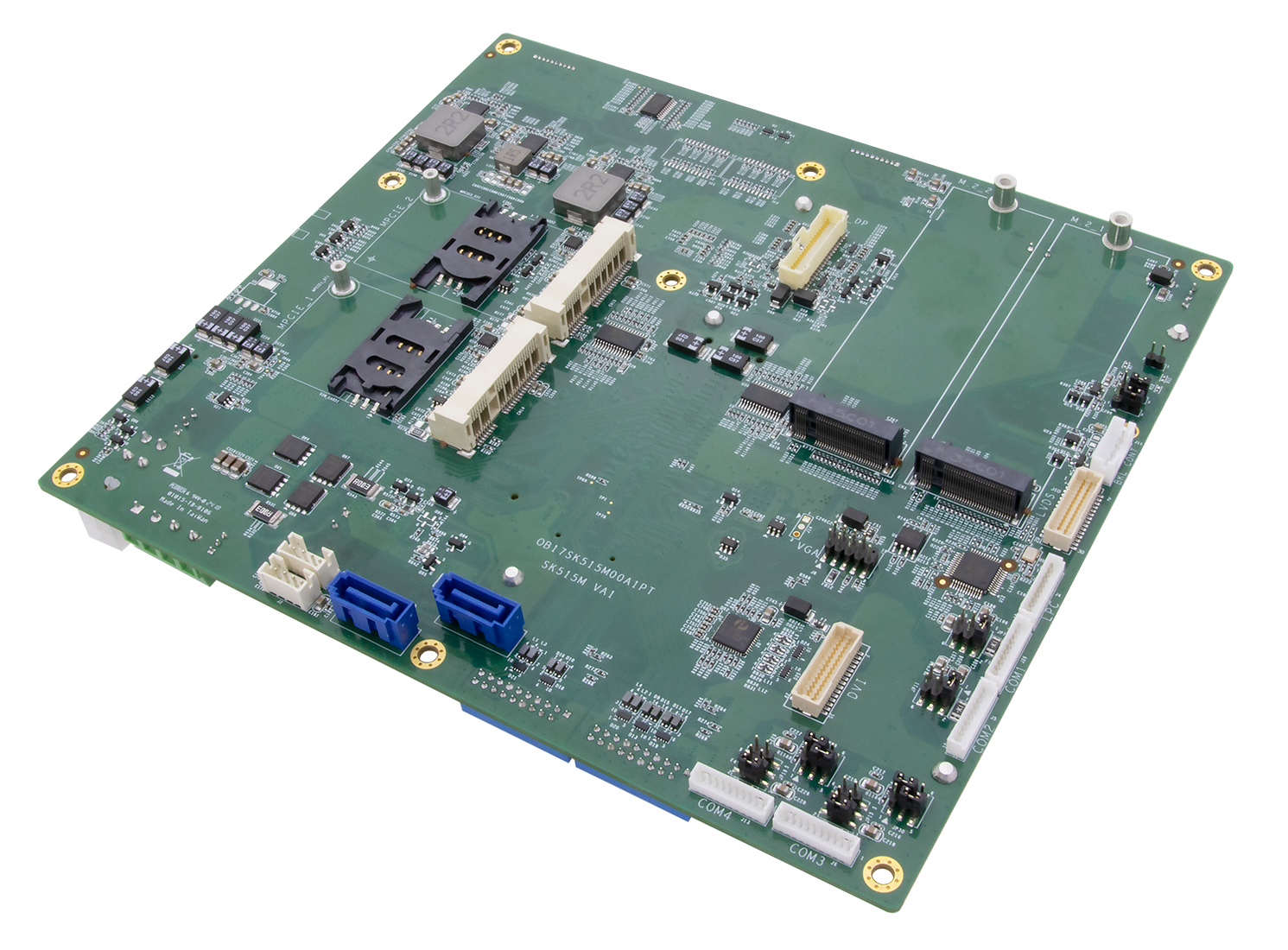

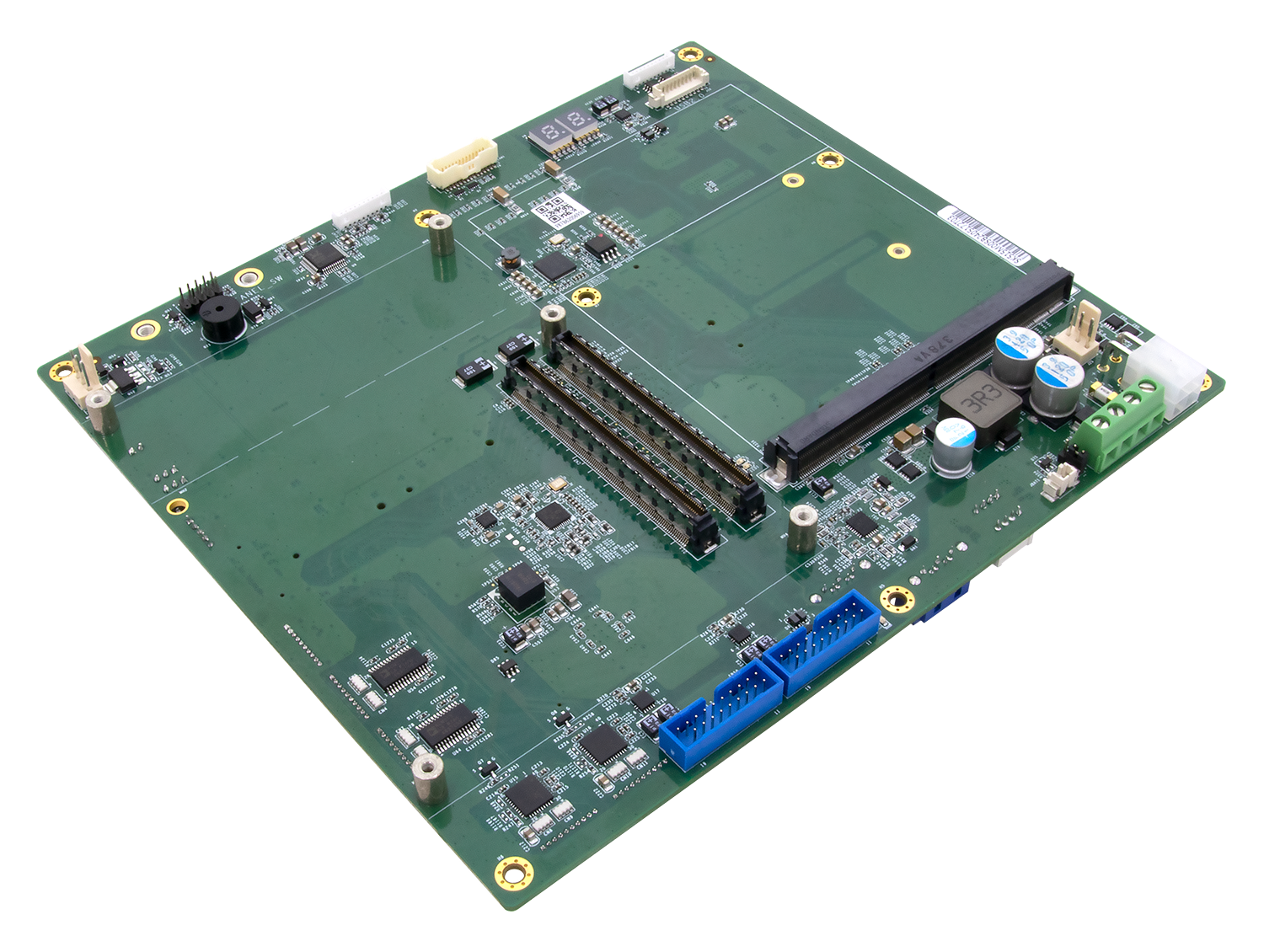

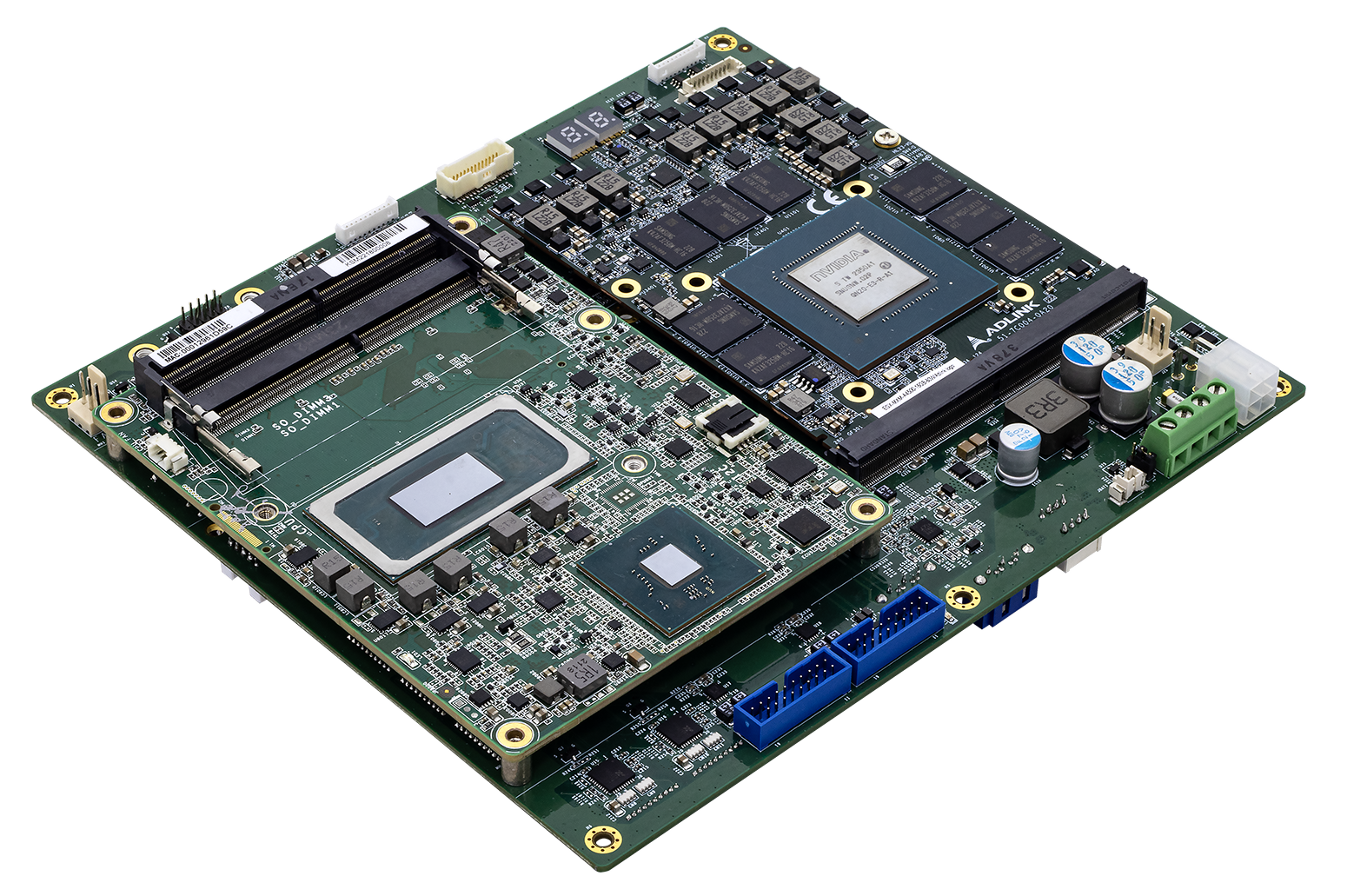

SK515M-T6CH
COM Express Type 6 carrier board w/ MXM, 2x M.2 M-key slot, 9~36V DC-IN, Extended Temp. -40 to 85°C
- COM Express Type 6 Support Intel® 9th Coffee Lake-H Processor
- MXM Type 3.1 Support NVIDIA® GTX® / RTX® GPU
- GPU Support Up to MXM RTX 5000 Ada (9728 CUDA, 16GB RAM)
- 2x Mini PCIe Express , 2x M.2 2280 M-key (2280)
- 2x RS232+2x RS232/422/485(By Jumper)
- 2x SATA Ports, 4x DI/4x DO, 4x USB3.0, 2x USB2.0
- Wide Range DC 9V~36V Input
- Extreme Temperature Support -40°C to 85°C
- Technical Profile
- Specifications
- Introduction
-
Computer-On-Module (COM), is a highly integrated board with CPU, chipset, memory, and peripherals designed into a component module. COM Express Type 6 has become the most versatile and most scalable COM standard supporting everything from small-scaled and cost-sensitive applications up to high-end computing and graphics-intensive solutions.
7StarLake’s SK515M-T6CH COM Express defines Open Scalable Modular Architecture and pin-out Type 6 platform which is ensuring amazing computing performance and offering a broad range of I/O interfaces including intense graphics support, Digital Display Interfaces (Display Port, VGA, LVDS, DVI) and super-fast USB 3.0 to serve all kind of different application requirements.
SK515M-T6CH pin-out Type 6 is a complementary specification to the existing Type 6 pin-out. It is replacing the graphics support by offering multiple 10GbE-KR ports and defining 32 PCIe lanes. The Type 6 is an ideal definition to design server-grade platforms for applications requesting high data and network throughput.
SK515M-T6CH is powered by 9th Coffee Lake-H. SK515M-T6CH is built to suit a wide range of computing applications from signal processing to unmanned vehicles. What’s more, SK515M-T6CH has the capability to operate in harsh environment. It accepts the extend range of temperature from -40 to 85°C. With outstanding computing capability and efficient thermal design, SK515M-T6CH is very suitable for industrial, military/aerospace and transportation.
- Rich Expansion Slot
-
SK515M-T6CH provides rich expansion to make the whole solutions easier. We could use Dual M.2 & Dual Mini-PCIe card.
-
NVIDIA Ampere RTXA2000/A4500 MXM 3.1 Graphics Module:
- Powered by NVIDIA RTX® A2000/A4500
- MXM 3.1Type-B Module
- A2000 High-speed 8GB GDDR6 Memory
- A4500 High-speed 16GB GDDR6 Memory
- A2000 2,560 new-gen. Pascal architecture CUDA cores
- A4500 5,888 new-gen. Pascal architecture CUDA cores
- Outputs 4 Channel Support
- Display Port 1.4 Ready
- Support NVIDIA CUDATM, OptimusTM, DirectX® 12, OpenGL® 4.5

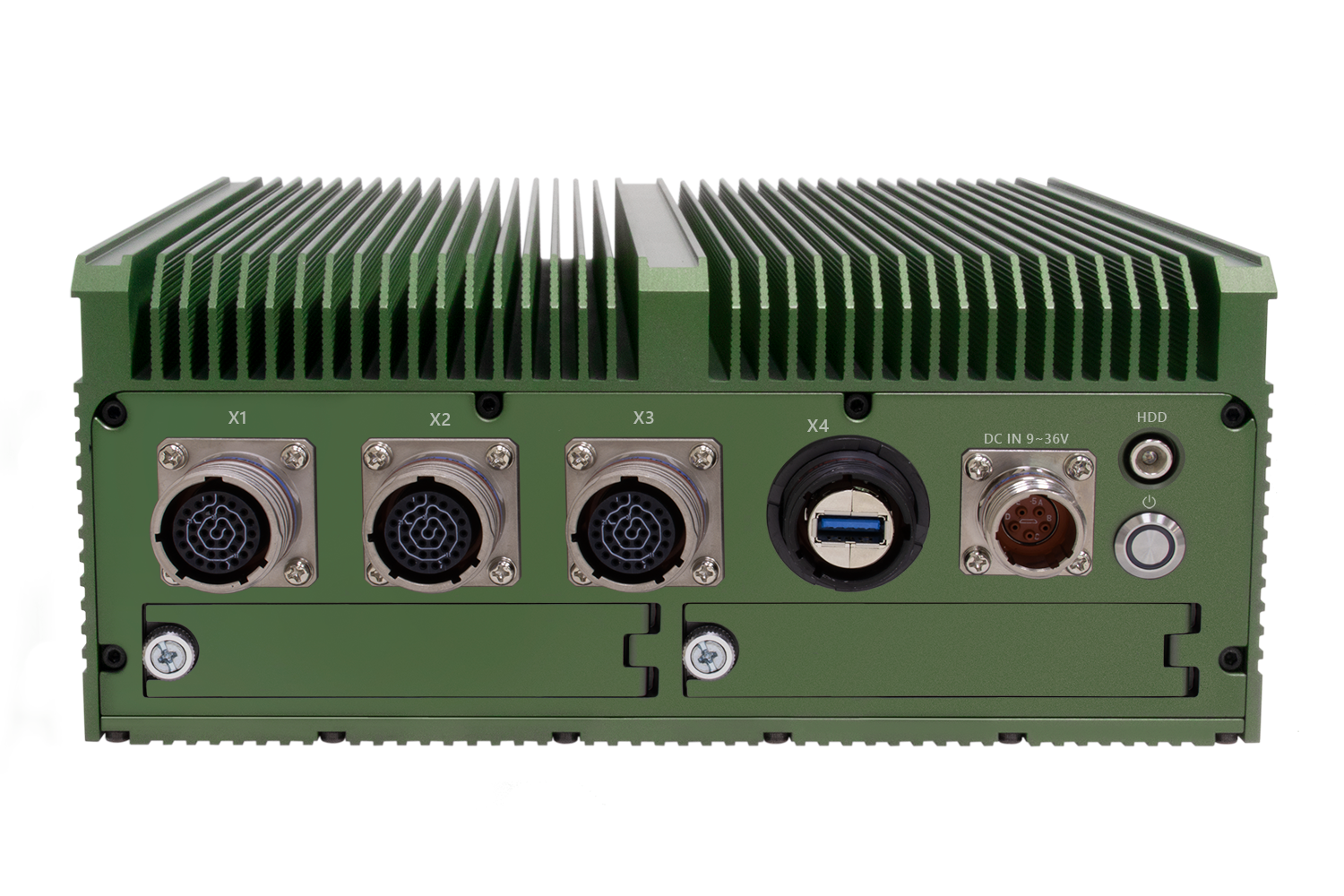

4CH 3G-SDI Military Frame Grabber-GPU Based System
- 4CH 3G-SDI Military Frame Grabber with low latency-GPU Based System
- Intel Xeon E-2276ME Support
- Nvidia NVENC H.264 Support , Low Latency
- Support up to 2 video output channels.
- Picture-In-Picture (PIP) up to 2 videos on top screen
- IP65 Sealed with External Cooling Blade
- MIL-STD-810G Thermal, Shock, Vibration, Humidity
- Power :18V~36V EMI Filter DC Input
-
| System | |
|---|---|
|
COM Express CPU Options(Type6) |
Intel® Xeon® E-2276ME, 45W Coffee Lake 9th Gen, 6C , Freq. 2.8 /4.5 GHz, 12MB cache Intel® Xeon® E-2276ML, 25W Coffee Lake 9th Gen, 6C , Freq. 2.0 / 4.2 GHz, 12MB cache Intel® Core™ i7-9850HE, 45W Coffee Lake 9th Gen, 6C, Freq. 2.7 / 4.4 GHz, 9MB cache Intel® Core™ i7-9850HL, 25W Coffee Lake 9th Gen, 6C, Freq. 1.9 / 4.1 GHz, 9MB cache |
|
GPU Module Options |
NVIDIA® Ampere RTX A2000, 80W, 8GB GDDR6, 2,560 CUDA Cores NVIDIA® Ampere RTX A4500, 80W/130W, 16GB GDDR6, 5,888 CUDA Cores NVIDIA® Ada Lovelace RTX 3500 Ada, 115W, 12GB GDDR6, 5,120 CUDA Cores NVIDIA® Ada Lovelace RTX 5000 Ada, 115W, 16GB GDDR6, 9,728 CUDA Cores |
|
COM Express Compatibility |
COM Express® Type 6 |
| Expansion | |
|
Mini PCIe |
2x Full-size Mini PCIe (with SIM card slot) |
|
M.2 Expansion |
2x 2280 M-key (PCIe x4 from PEG) |
| SATAIII | 2x SATAIII |
| Display | |
|
Display Port |
2x Display Port outputs from GPU |
|
VGA |
1x output from COM Express |
|
DVI |
1x output from COM Express |
|
LVDS |
1x dual channel 18/24bit LVDS |
| Ethernet | |
|
Gigabit Ethernet |
2x 10/100/1000/2.5G Ethernet Ports (One from CPU module) |
| I/O | |
|
USB |
4x USB3.0 + 2x USB2.0 |
|
COM Port |
2x RS232 + 2x RS232/422/485 (function select by jumper) |
|
Audio |
1x Line-out, 1x MIC-In |
|
SATA Power |
2x SATA Power |
|
DI/DO |
1x DI/DO (4 in / 4 out) |
|
CPU FAN |
1x CPU FAN |
|
MXM FAN |
1x MXM FAN |
| Battery | 1x Battery Header |
| Power System | |
|
Input Power_SYS |
9V~36V (1x 4P Terminal Block) |
|
Input Power_MXM |
12V (ATX 4P) |
|
Power Consumption |
Varies per COM Express /MXM with different CPU and GPU models |
|
RTC Battery |
3V CR2032 |
| Mechanical and Environment | |
|
Dimensions |
170mm x 190mm |
|
Operating Temperature |
-40°C to 85°C |
|
Storage Temperature |
-40°C to 85°C |
|
Relative Humidity |
10% to 90%, non-condensing |
| Standard Compliance | |
| Standard Compliance | CE/FCC |
| OS | |
| OS Support |
Windows®10 64-bit Linux(Support by request) |
