INS8267B

 Micro-ATX Form Factor Intel® 14/13/12th Gen. Core™ i9/i7/i5/i3 processors

  • Intel® 14th/13th/12th Gen Raptor Lake-S Refresh/Raptor Lake-S/Alder Lake-S Series 125 W processor
  • Intel® R680 Chipset
  • 4 x DDR5 4400 MT/s ECC/non-ECC UDIMM slots up to 128GB
  • Quadruple independent displays: 2DP, 2HDMI, eDP
  • 4 x 2.5GbE LAN with RJ-45
  • 1 x PCIe x 16 (Gen 5) Slot, 2 PCIe x4 (Gen 4), 1 PCIe x 4 (Gen 3) slots
  • 3 x M.2 M key, 4 SATA 3.0 for storage, SATA RAID 0/1/5/10
  • 8 x USB 3.2 Gen 2, 2 x USB 3.2 Gen 1, 4 x USB 2.0, 6 x COM, GPIO, PS/2, Audio, 3 System FAN
  • Onboard TPM 2.0
  • SMBus, I2C, PMBus, iAMT 16.x, Chassis Intrusion
  • ATX Power
  • Operating Temperature: ET: 0°C ~ 60°C; UT: -20°C ~ 70°C
  • Technical Profile
  • Specifications
Introduction

INS8267B is a rugged Micro-ATX mother board boosted by Intel® Raptor Lake-S Refresh14th /Raptor Lake-S 13th /Alder Lake-S 12th with an LGA 1700 socket, featuring a hybrid Intel® P&E Cores technology which brings unprecedented performance in AI inference, Machine Learning and other high-computing multitasks.



Providing 1 x PCIE 5.0 X16 slot, 2 x PCIE4.0 X8 slot, 1 x PCIE3.0 X8 slot and 1 x M.2 2280/22110 B+M-key PCIe4.0 x4 signal from CPU,  1 x M.2 2280/2242 B+M-key PCIe4.0 x4,  1 x M.2 2280/2242 B+M-key PCIe3.0 x4, INS8267B supports demanding expansion cards such as graphic card for powerful graphics processing and high-speed NVMe for reliable storage which will be powerful pillar to support graphic-intensive program with high storage.



Further, compatible with the Wi-Fi 6E standard which delivers ultimate Wi-Fi performance with higher throughput and wider channels, INS8267B enables ultra-fast wireless connectivity to keep each connected device performing at an optimum level without compromising the flexibility of locations.

Last but not least, engineered to maintain high operation in the most intrigue environment, INS8267B is able to operate in low and high-heat climates ranging from -20°C ~ 70°C, guaranteeing the consistent high performance despite of ambient temperature variation.



Intel® Raptor Lake-S Refresh/Raptor Lake-S/ Alder Lake-S processors

Via fully-upgraded hybrid performance architecture (configuration of a mix of performance and efficiency cores) , the larger, performance-driven cores (P-core) handle compute-intensive and AI workloads, while the smaller, energy-efficient cores take care of high-density and scale-out workloads in the background. INS8267B features efficiency optimization of graphic performance, machine vision, and AI inference enhancement.

Rich I/O and Modern Manageability

Supporting up to 4 x 2.5GbE LAN, 4 x SATAIII, 2 x Display ports, 2 x HDMI ports, 8 x USB 3.2 Gen and several I/O options, INS8267B offers various I/O and system-critical functions. Compatible with Intel vPro® platform and SATAIII with RAID, INS8267B enables to improve productivity through management control and strengthen data security by optimizing data transferring performance as well as fail-safe backup protections.

Ultimate Durability

Topping its power off with extended operating temperature of -20°C ~ 70°C and resistance to humidity, dust, shock and vibration, INS8267B shows high stability and reliability to meets the demand of 24/7 non-stop operating in the most critical environments through its robust structure.

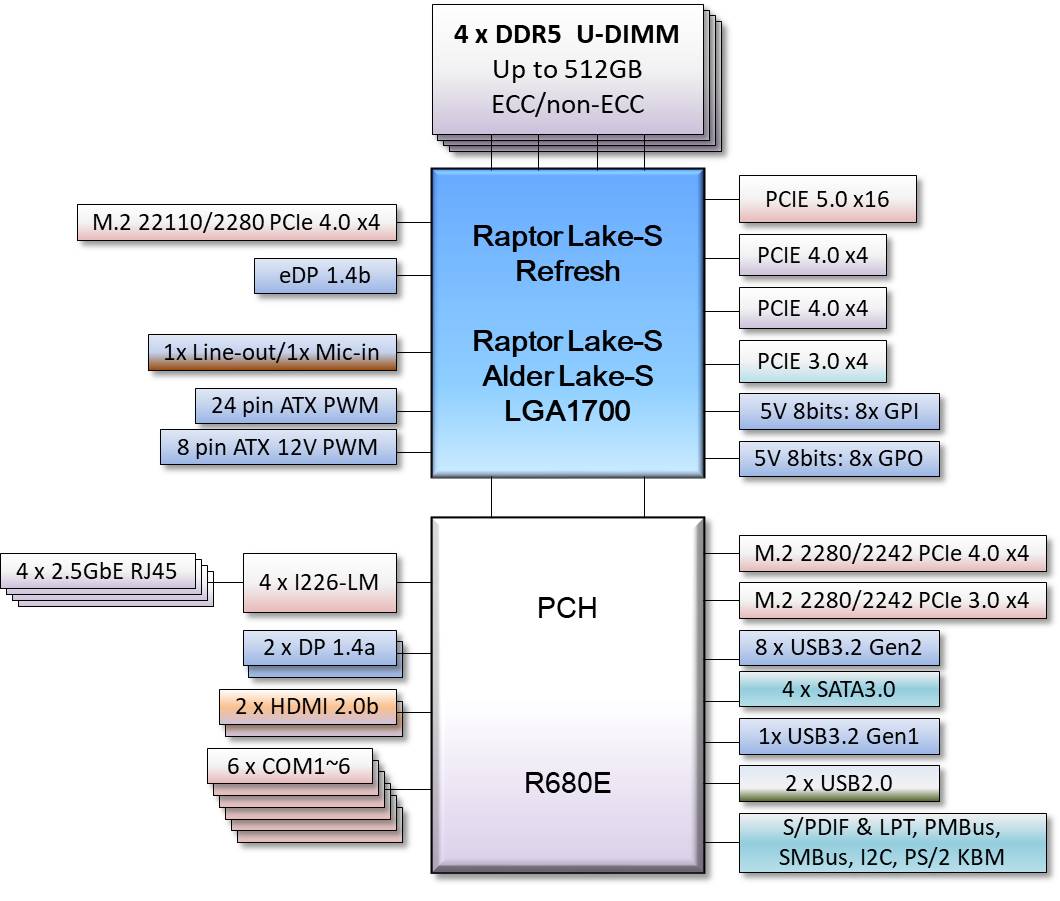

Block Diagram
block Diagram



System

CPU

14th Gen Intel® Raptor Lake-S Refresh

i9/i7/i5/i3 Pentium®/ Celeron® IOTG Series Processor, TDP 35W~125W

13th Gen Intel® Raptor Lake-S

i9/i7/i5/i3 Pentium®/ Celeron® IOTG Series Processor, TDP 35W~125W

12th Gen Intel® Alder Lake-S

i9/i7/i5/i3 Pentium®/ Celeron® IOTG Series Processor, TDP 35W~125W

Memory type

4 x DDR5 UDIMM slots (288-pin, vertical), - Up to 4400 MT/s, - Up to 128GB

Chipset

Intel® R680

Ethernet

4x Intel® I226-LM 2.5GbE RJ45 LAN

TPM

TPM 2.0 (on Board)

Watchdog

256-level Watchdog Timer

Smart Fan Control

1 x 4-pin PWM CPU fan connector

3 x 4-pin PWM system fan connector

Expansion Slot

M.2

1 x M.2 2280/22110 B+M-key (PCIe 4.0 x4 NVMe; Signal from CPU),

1 x M.2 2242/2280 B+M-key (PCIe 4.0 x4 & SATA3.0 Signal from PCH)

1 x M.0 2242/2280 B+M-key (PCIe 3.0 x4 signal from PCH)

PCIe Slot

1 x PCIe 5.0 X16 slot + 2 x PCIe 4.0 X4 + 1 x PCIe 3.0 x4 slots.

Graphic

Chipset

Intel® UHD Graphics

Display Port

Up to 4K (4096 x 2304) @60 Hz

1 x eDP 1.4b (4096 x 2160 @60 Hz)

Independent modes

DP1 + DP2 + HDMI™1 + HDMI™2

DP1 + DP2 + HDMI™1/2 + eDP

DP1/2 + HDMI™1 + HDMI™2 + eDP

Ethernet

Chipset

Intel® I226-LM 2.5Giga LAN

Audio

Codec

Realtek® ALC897 Audio Codec

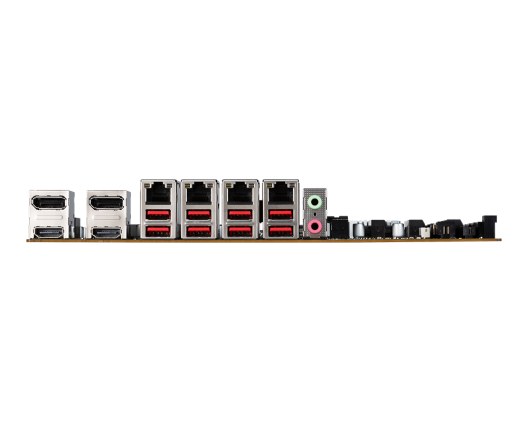

Rear I/O

USB

8 x USB 3.2 Gen 2x1 ports

Display port

2 x DP 1.4a Display Ports

2 x HDMI™ 2.0b ports

Audio

1 x Line–out/Mic-in Jack

LAN

4 x 2.5GbE RJ45 LAN ports

Internal I/O

SATAIII

4 x SATA3.0 6Gb/s ports

Support RAID 0/1/5/10, AHCI mode

USB

1 x USB3.2 Gen 1 connector

1 x USB2.0 connector

2 x USB2.0 Type-A connectors

Audio

1 x Front Audio connector

Panel

1 x Front Panel connector

1 x Front LAN LED connector

1 x Front Audio connector (Lin-out & Mic-in)

Display

1 x eDP connector

Serial

6 x COM ports connectors

GPIO

2 x GPIO connectors(5V, 16-bit 8x GPU/GPO)

Fan

1 x 4-pin PWM CPU Fan connector

3 x 4-pin PWM system Fan connectors

Power

1 x 8-pin ATX 12V power connector

1 x 24-pin ATX power connector

Others

1 x CMOS battery header

1 x Parallel port(LPT) header

1 x JCASE Chassis intrusion header

1 x S/PDIF connector

1 x JKBMS PS/2 keyboard & Mouse connector

1 x PMBus connector (3.3V)

1 x SMBus connector (5V)

1 x I2C connector

1 x FIO header / 1 x SPI TPM header

Jumpers

6 x COM voltage select jumpers

1 x Clear CMOS jumper

1 x ME jumper (for iAMT BIOS flash)

1 x AT/ ATX mode select jumper

1 x eDP Power Select Jumper

Mechanical and Environmental

Form Factor

Micro ATX

Power Type

ATX 8-pin + ATX 24-pin

Dimension

244mm x 244mm x 1.6mm (9.6” x 9.6”)

Operating

Temperature

ET : 0°C ~ 60°C

UT : -20°C ~ 70°C

Storage Temperature

-40°C ~ 85°C

Relative humidity

10% to 95%, non-condensing

Standard Compliance

Standard Compliance

CE/FCC Class B, BSMI

OS

OS Support

Windows 10 IoT Enterprise 2021 LTSC (64-bit)

Windows 11 IoT Enterprise LTSC 24H2 (64-bit)

Linux Kernel 5.xx, Ubuntu 22.04 LTS Pre-scan
