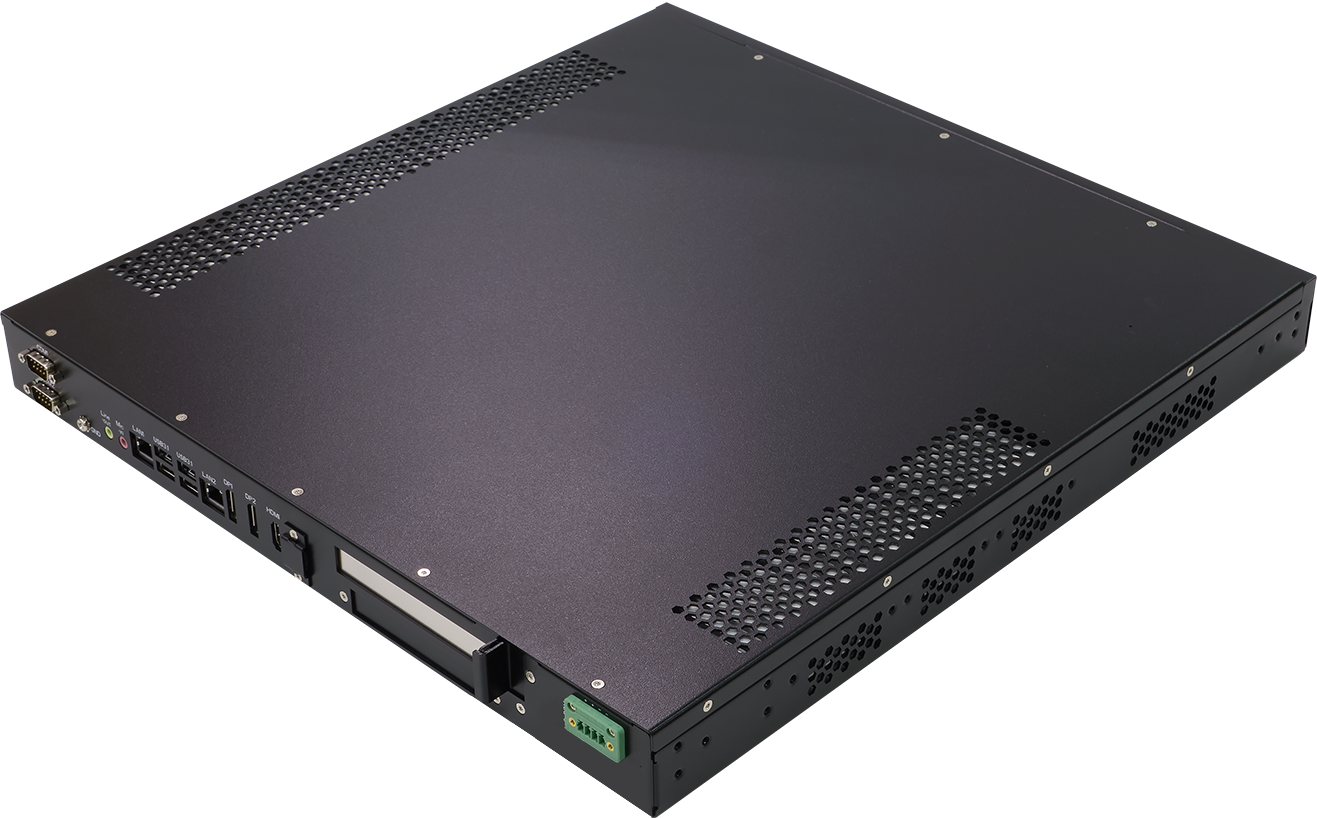

ROC286A
19” 1U Rack-mount Rugged Fanless System with Intel® Coffee Lake-Refresh 8th/9th Processor(Up to 65W), 2 x DisplayPort, 1 x HDMI, 1 x PCIe x16, 6 x USB,9~36V DC-in, Extended Temp. -30°C to 70°C
- Intel® Coffee Lake-Refresh 8th/9th Processor(Up to 65W)
- Intel®Q370 Chipset
- 2 x SO-DIMM DDR4 2400/2666 MHz up to 64GB
- Front IO: 2x2.5”SATA HDD/SSD easy swap tray,2xUSB2.0
- Back IO: 2xCOM,4xUSB3.1,2xDP,2xLAN,1xLine-out/Mic
- DC-IN 9~36V
- Extended Operating Temperature -30 to 70°C
- Technical Profile
- Specifications
- Introduction
-
ROC286A is an industrial 19” 1U Rack-mount rugged fanless server. Based on Intel® Coffeelake 14nm Core™ Q370 Chipset, ROC286A can be processed by 8th/9th Processor (up to 65W). It supports up to 64GB of memory capacity, 1 x PCIe x16 Slot 1 x M.2(Key M, PCIe x4 and SATA3) Expansion Slot,6 x USB, 3 x DisplayPort, 2 x LAN, 1 x Lineout/MIC, 1 x COM,2 x 2.5” SATA HDD/ SSD Easy Swap Tray 64GB Cores, 3.8GHz).
With further advantages, for example, HDD/ SSD easy swap tray and multi-expansion slot, we believe that ROC286A is a best choice for those, who are looking for an ideal server to meet the requirements of commercial and industrial platforms, process control, intelligent automation and manufacturing applications.
|
System |
|
|---|---|
|
High Performance Processor |
8th/9th Processor (up to 65W) |
|
Memory type |
2 x SO-DIMM DDR4 2400/2666 MHz up to 64GB |
|
Chipset |
Intel® Q370 Chipset |
|
Expansion Slot |
1 x PCIex16 1x M.2 (Key M, 2242/2280) with PCIe and SATA Signal |
|
Storage |
|
|
HDD/SDD |
2 x 2.5” SATA HDD/SSD easy swap tray |
|
Ethernet |
|
|
Ethernet |
Intel® I210 & I219LM GbE LAN (support 10/100/1000 Mbps for x2 RJ45 ports) |
|
Rear I/O |
|
|
Display Port |
2 x DP |
| HDMI | 1 x HDMI |
|
Ethernet |
2 x RJ45 Intel® I210 & I219LM GbE LAN (support 10/100/1000 Mbps) |
|
Audio |
2 x 3.5mm Audio Jacks (1 x MIC, 1 x Line-Out) |
|
COM |
2 x RS232 /422 / 485 (422 / 485 select by BIOS) |
|
USB Port |
4 x USB 3.1(10Gb/s) |
|
DC-IN |
DC 9~36V(1 x 4P Terminal Block) |
|
Front I/O |
|
|
Button |
1 x Power Button w/Indicator LED |
|
Indicator LED |
HDD |
|
USB Port |
2 x USB 2.0 |
|
Easy Swap SSD Tray
|
2 |
|
Applications, Operating System |
|
|
Applications |
Commercial and Industrial Platforms, Embedded Computing, Process Control, Intelligent Automation and manufacturing applications |
|
Operating System |
Windows 10 64Bit Ubuntu13.04, Ubuntu13.10, Ubuntu14.04, Fedora 20 |
|
Physical |
|
|
Dimension (W x D x H) |
430 x450 x 44 mm |
|
Weight |
8.42Kg |
|
Chassis |
SECC |
|
Heatsink |
Aluminum Alloy, Corrosion Resistant |
|
Finish |
Anodic aluminum oxide |
|
Environmental |
|
|
MIL-STD-810G Test |
Method 507.5, Procedure II (Temperature & Humidity) Method 501.5, Procedure I (Storage/High Temperature) Method 501.5, Procedure II (Operation/High Temperature) Method 502.5, Procedure I (Storage/Low Temperature) Method 502.5, Procedure II (Operation/Low Temperature) Method 503.5, Procedure I (Temperature shock) |
|
Green Product |
RoHS compliance |
|
Operating Temperature |
w/o Graphic Card (ET: -20 to 60°C; UT: -30 to 70°C) ; w/Graphic Card (0 to 50°C) |
|
Storage Temperature |
-40 to 85°C |
|
Relative Humidity |
5% to 95%, non-condensing |
|
EMC |
CE and FCC compliance |
